☑ Industry Standard
Generates 11.5 amps of power, charges 24-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
☑ High Performance
Excellent low-light performance even on early mornings, evenings, and cloudy days.
☑ Rugged Durability

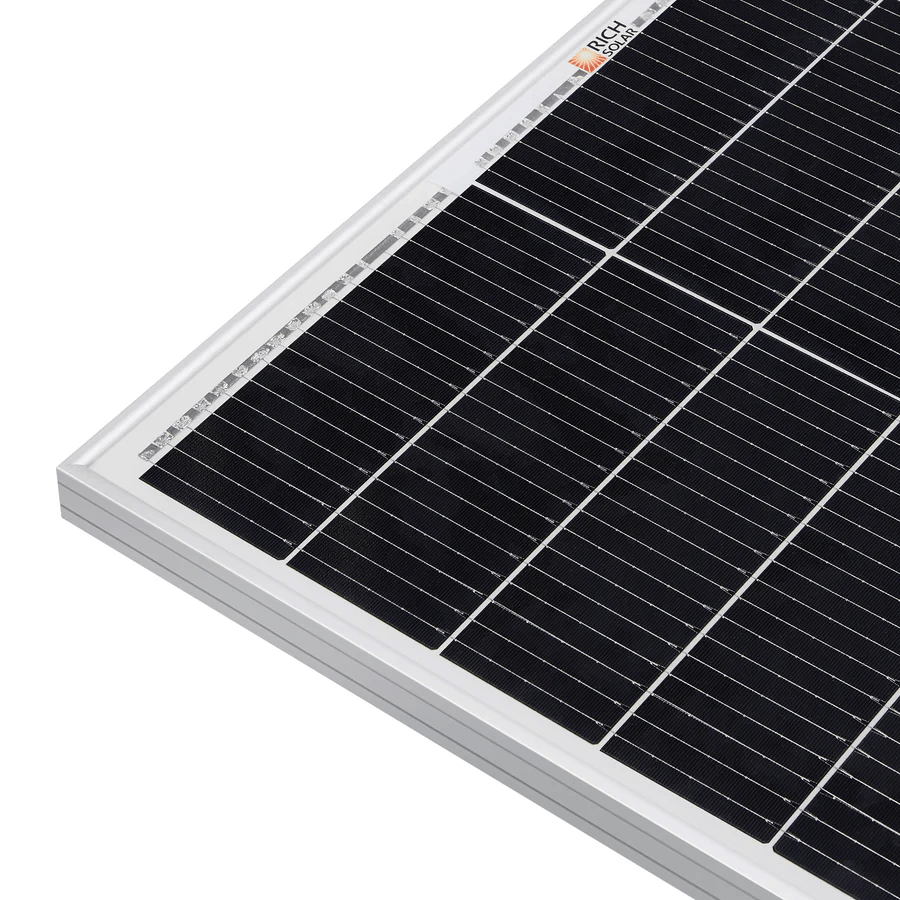

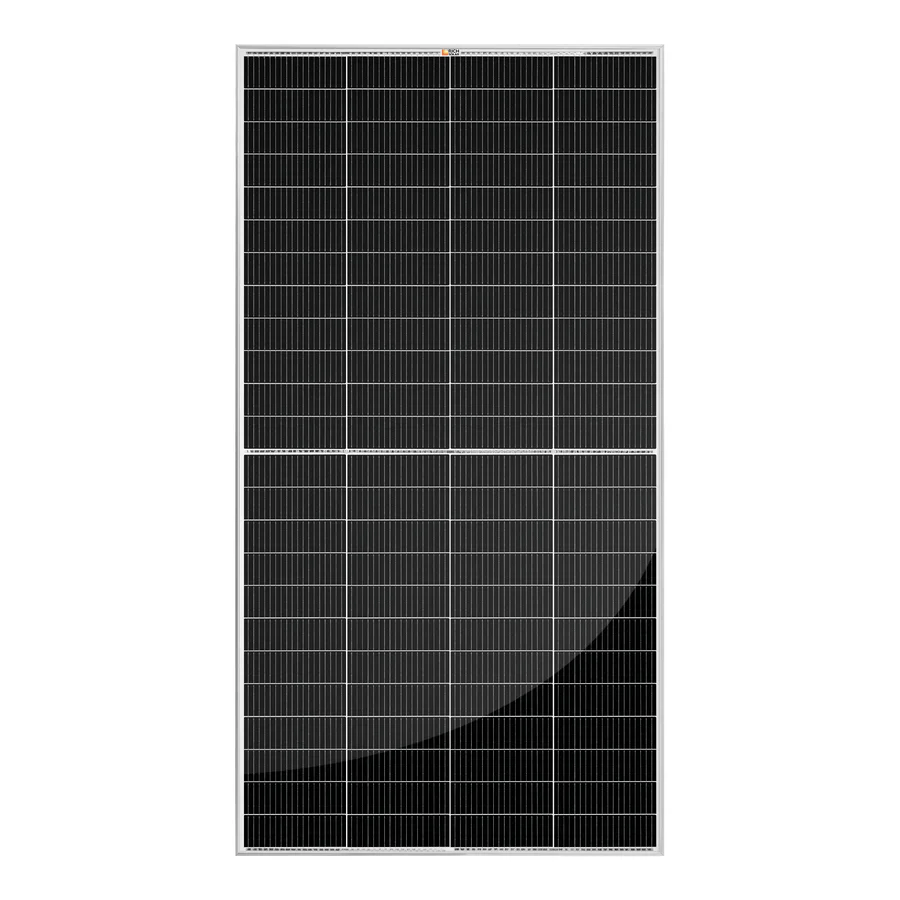

Built with strong high transmission “anti-reflective” coated tempered glass and an anodized aluminum frame.
☑ Simple Installation

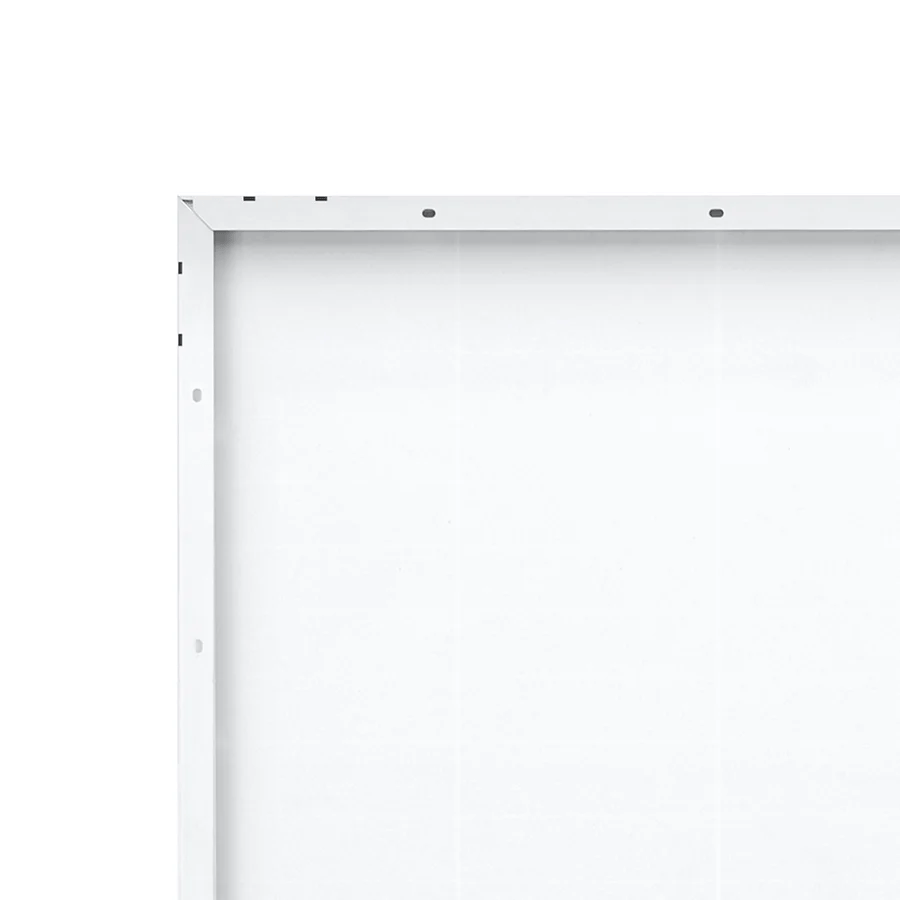

Fast and easy installation thanks to 14 pre-drilled holes that are compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
☑ Warranty
25-year power output warranty and a 10-year workmanship warranty.

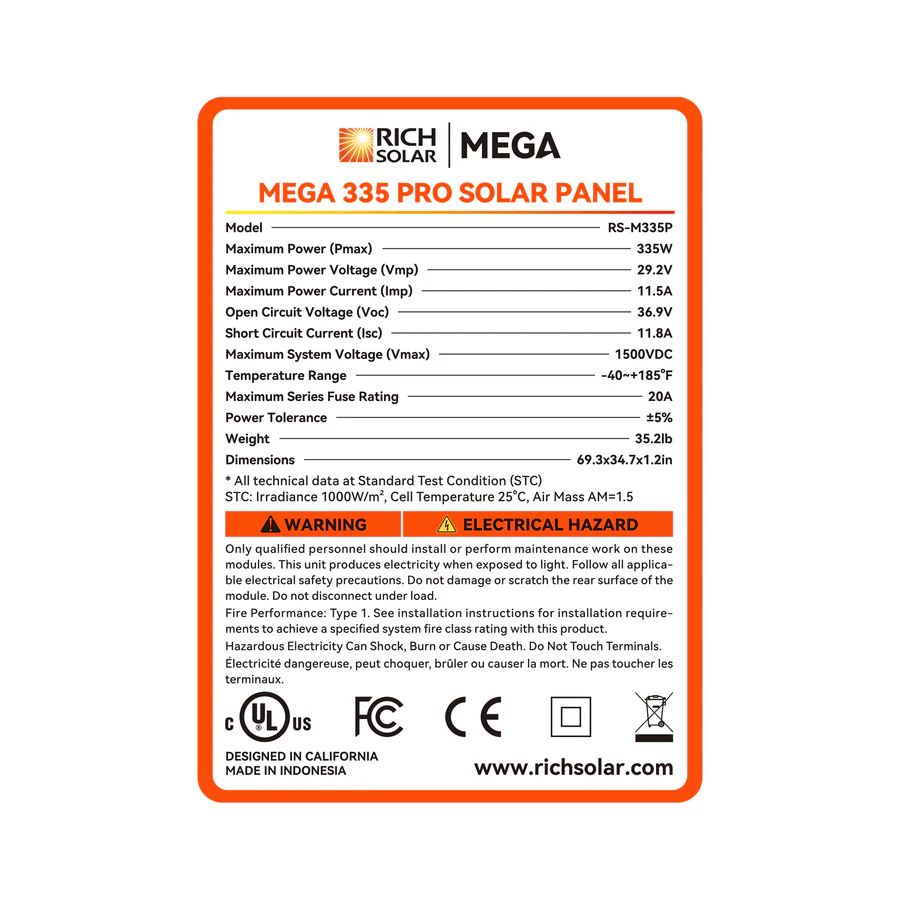

Maximum Power(Pmax):
335W
Maximum Power Voltage(Vmp):
29.2V
Maximum Power Current(Imp):
11.5A
Open Circuit Voltage(Voc):
36.9V
Short Circuit Current(Isc):
11.8A
Maximum System Voltage(Vmax):
1500VDC
Temperature Range:
-40°F ~ 185°F
Max Series Fuse Rating:
20A

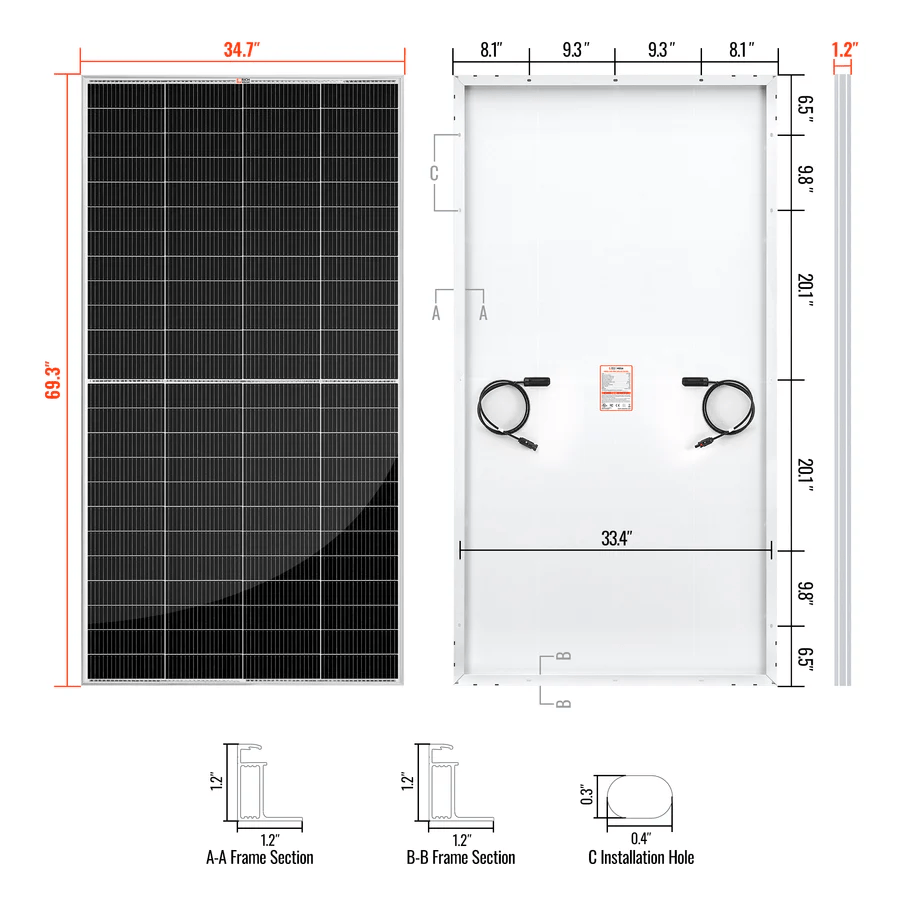

Dimensions:
69.3 x 34.6 x 1.2 in
Weight:
35.2 lb
Full Specification: Click Here

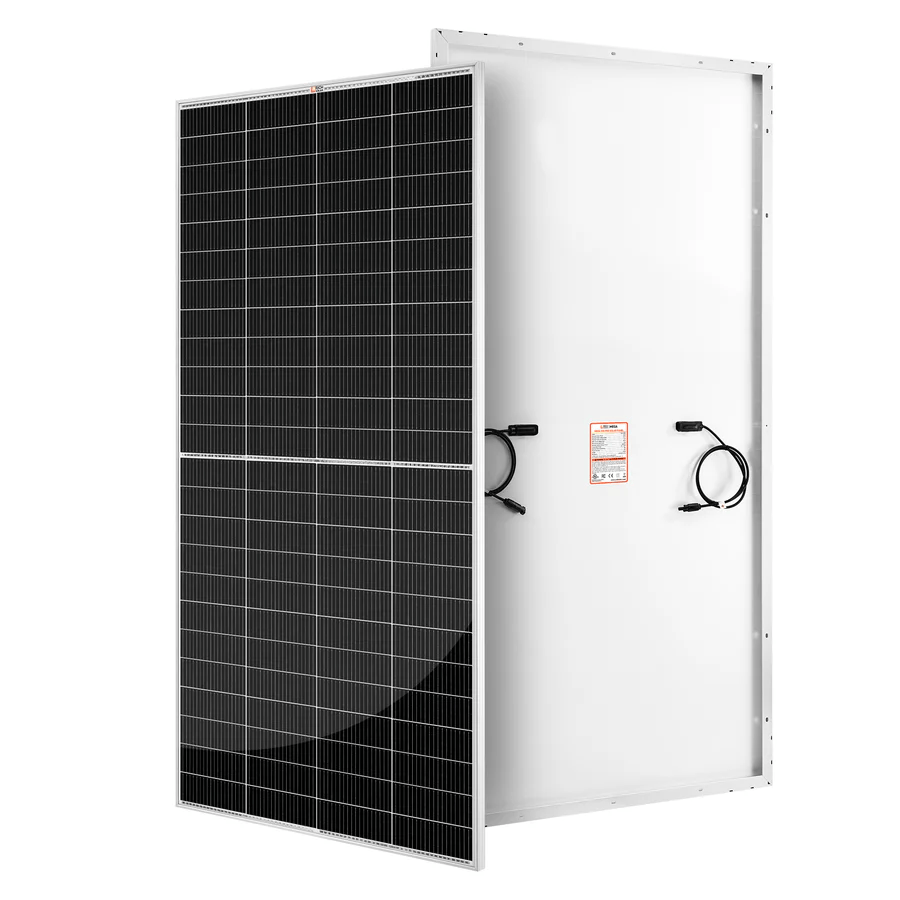

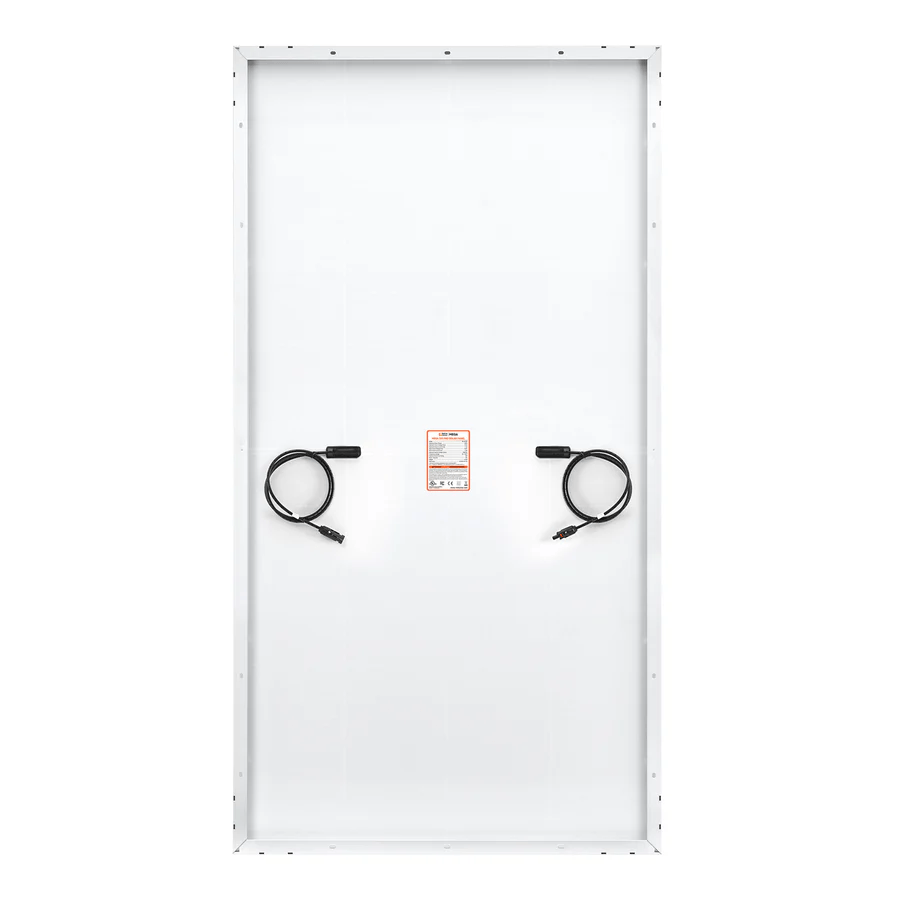

Panel leads (pair): 3 feet each
IP67-rated waterproof junction box
IP67-rated waterproof solar connectors
Bypass diodes built into the junction box
