MEGA 250 PRO | 250 Watt 24 Volt Solar Panel | Premium 24V Off-Grid Solar Panel for Campers, Tiny Homes, Cabins | 25-Year Output Warranty | UL Certified

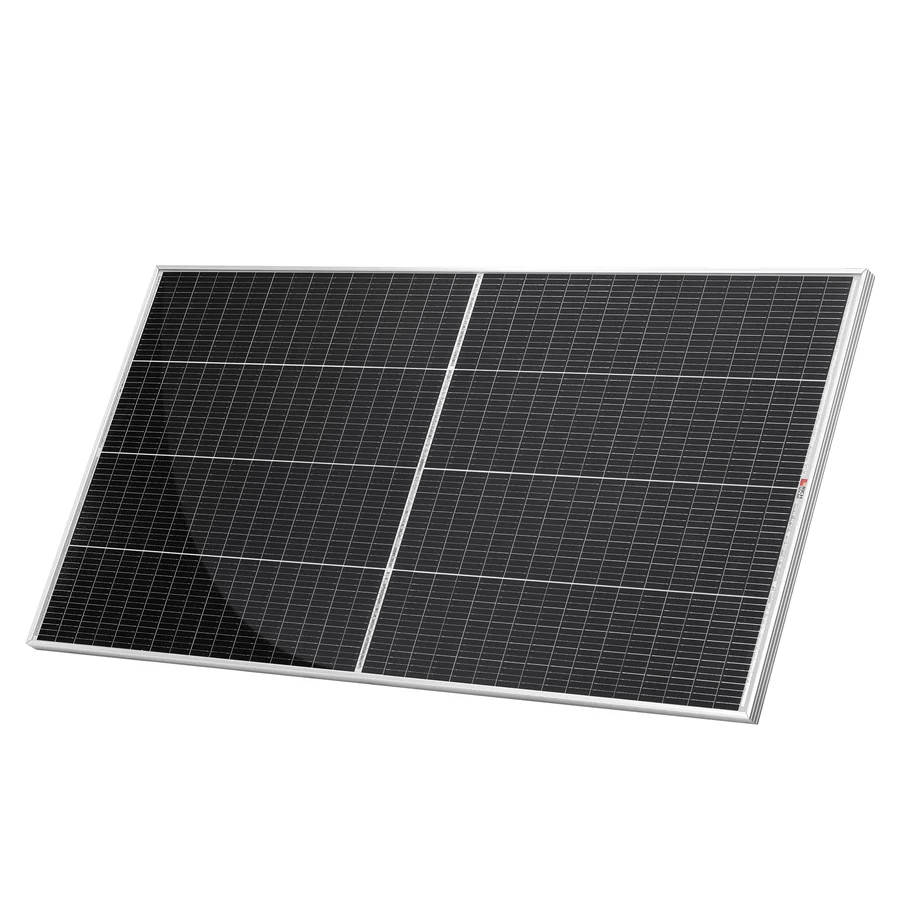

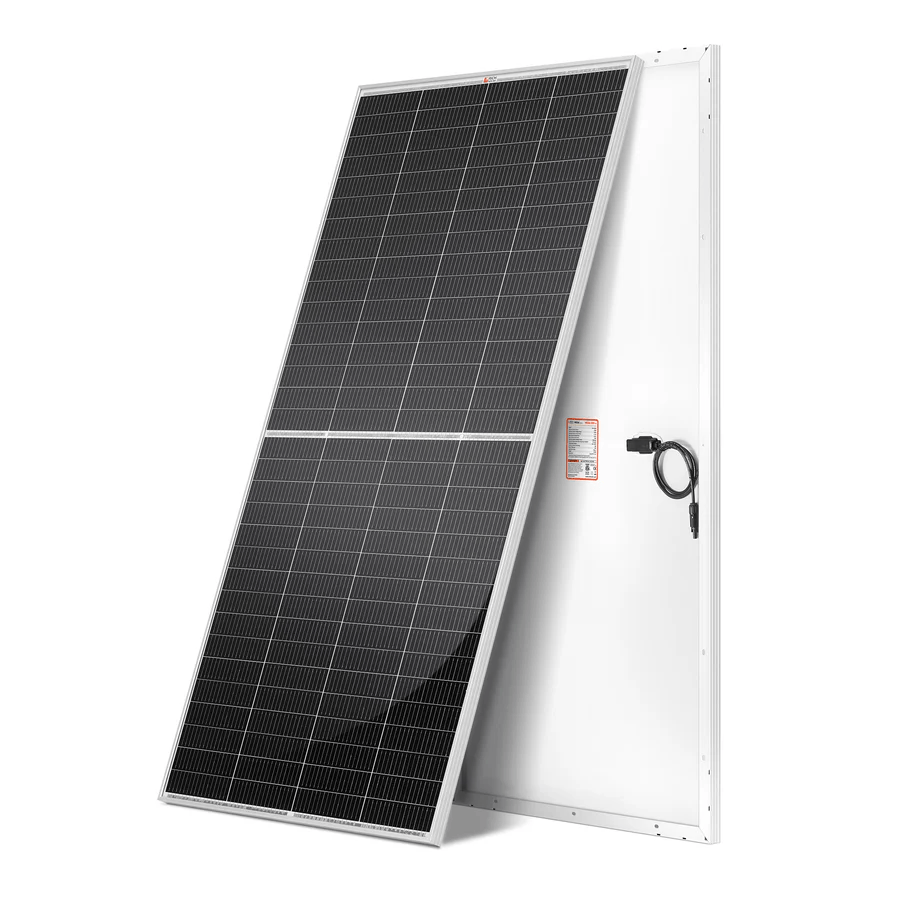

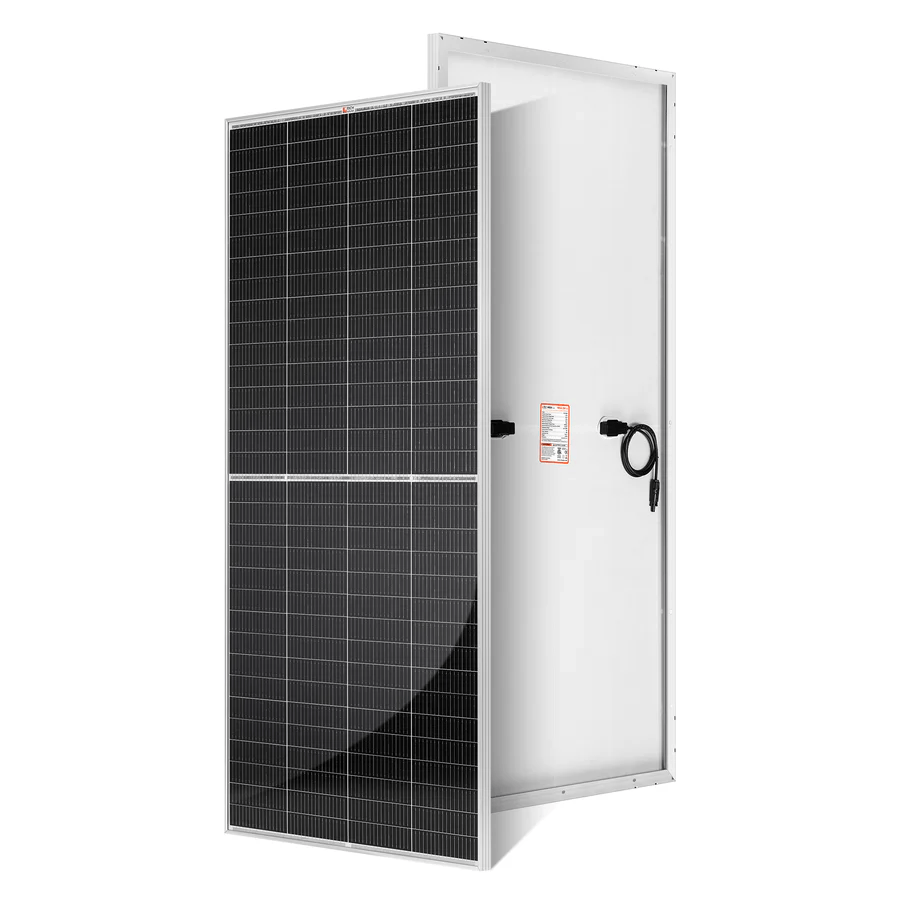

MEGA 250 PRO
250W 24V SOLAR PANEL

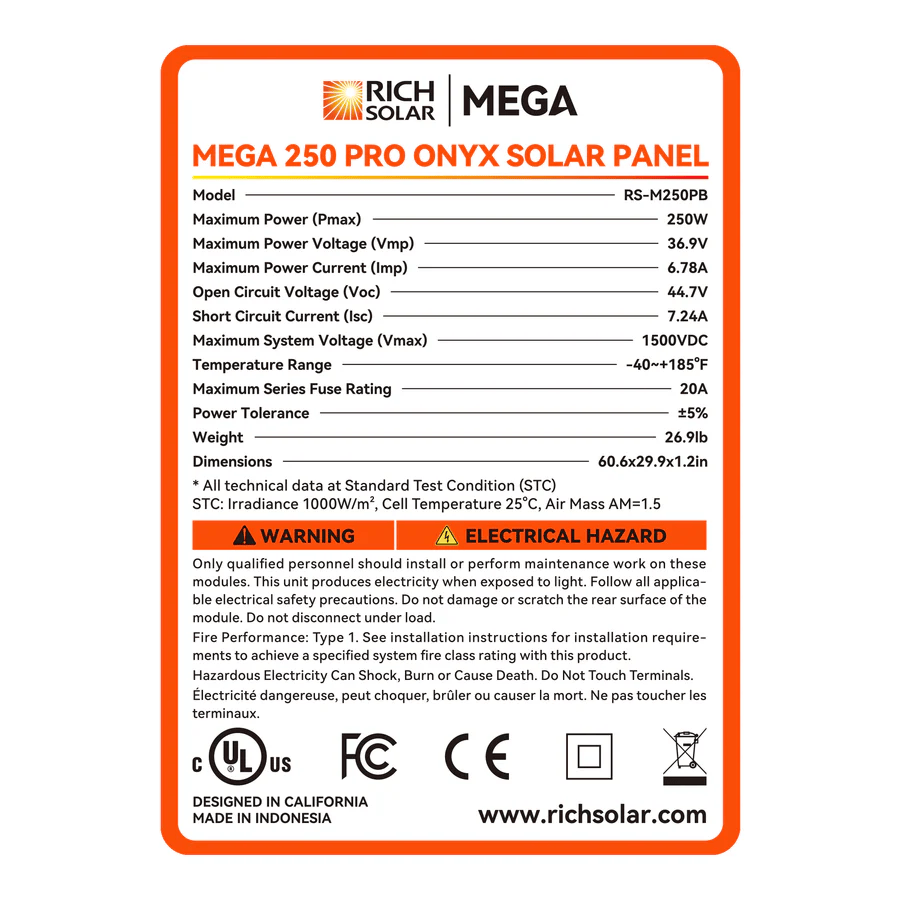

Maximum Power(Pmax)
250W
Maximum Power Voltage(Vmp)
36.9V
Maximum Power Current(Imp)
6.78A
Open Circuit Voltage(Voc)
44.7V
Short Circuit Current(Isc)
7.08A
Maximum System Voltage(Vmax)
1500 VDC
Temperature Range
-40°F ~ +185°F
Weight
26.9 lb

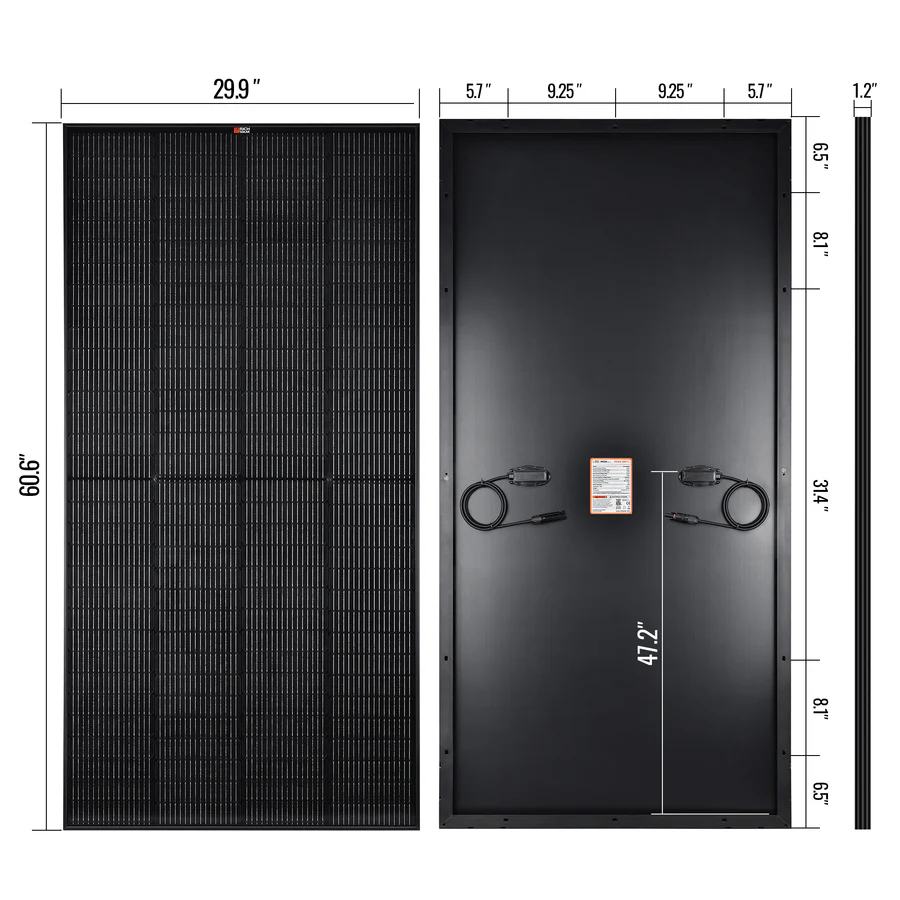

Dimensions
60.6 x 29.9 x 1.2 in (1540 x 760 x 30 mm)
Full Specification: Click Here
Industry Standard

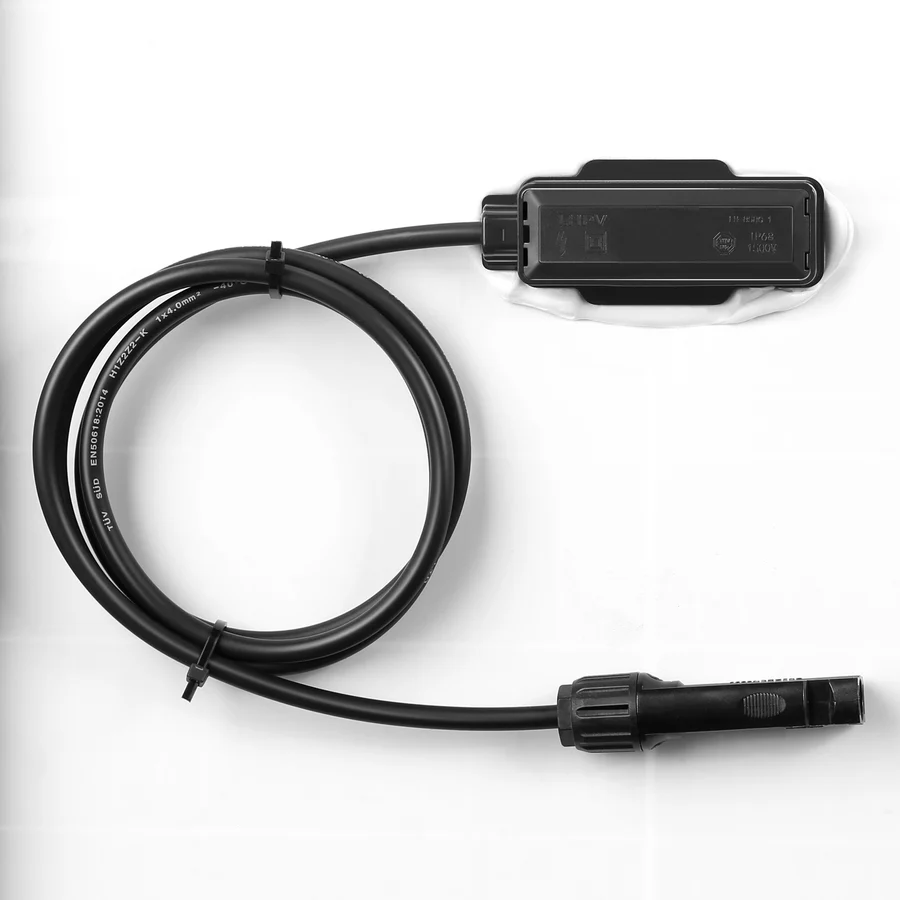

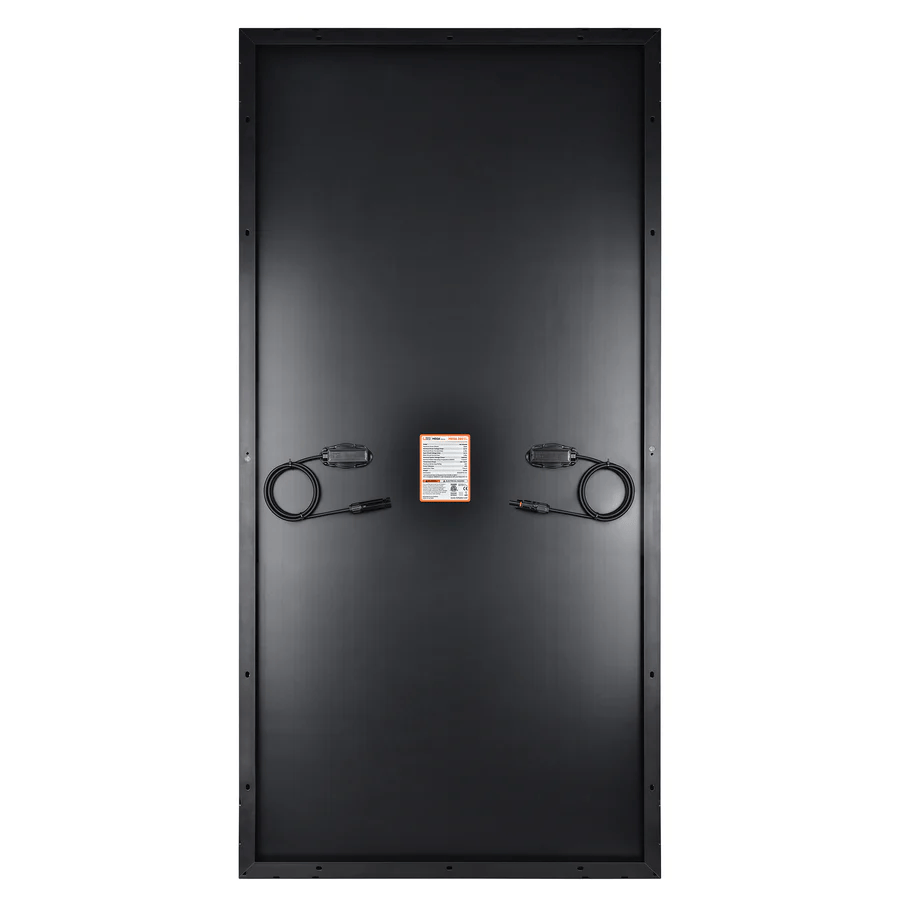

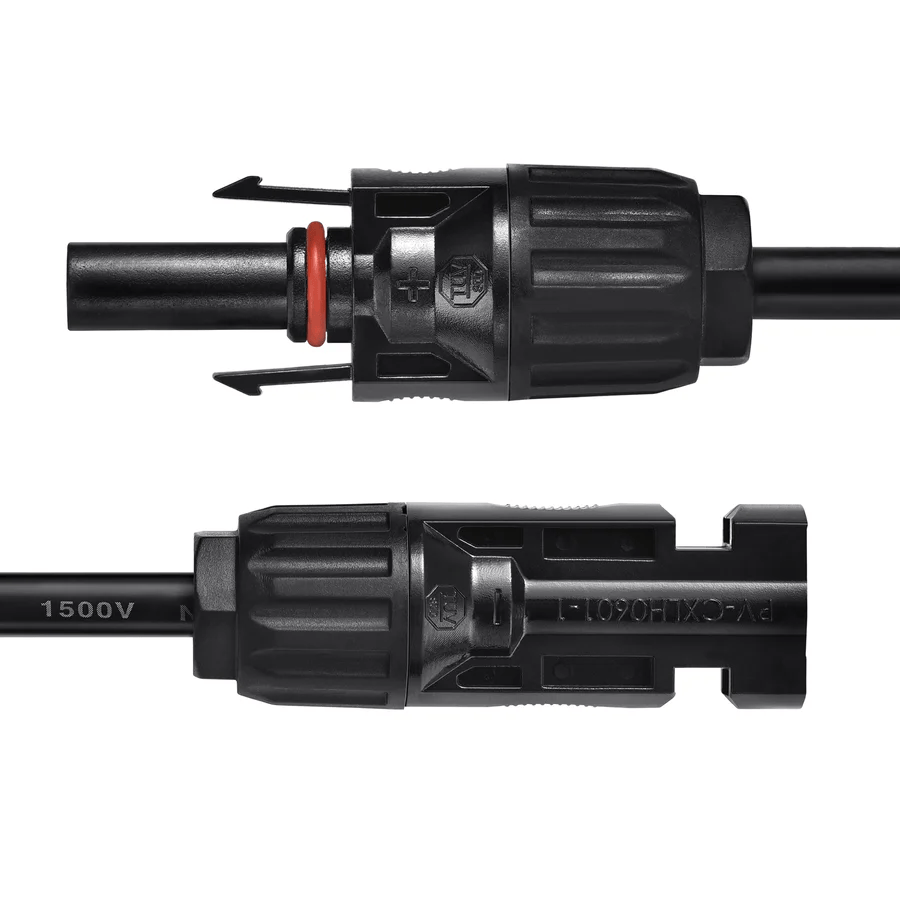

Industry-standard quick-connect cables (Solar Connectors) work in series or in parallel.
High Performance
Excellent low-light performance even on early mornings, evenings, and cloudy days.

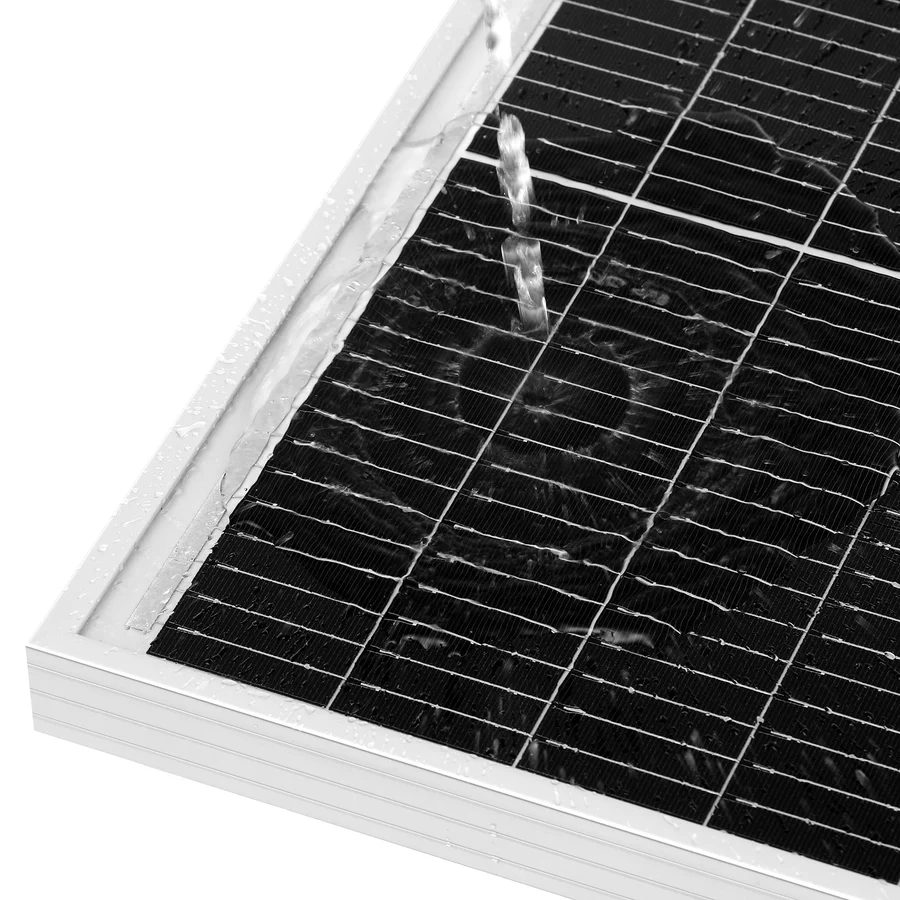

Rugged Durability

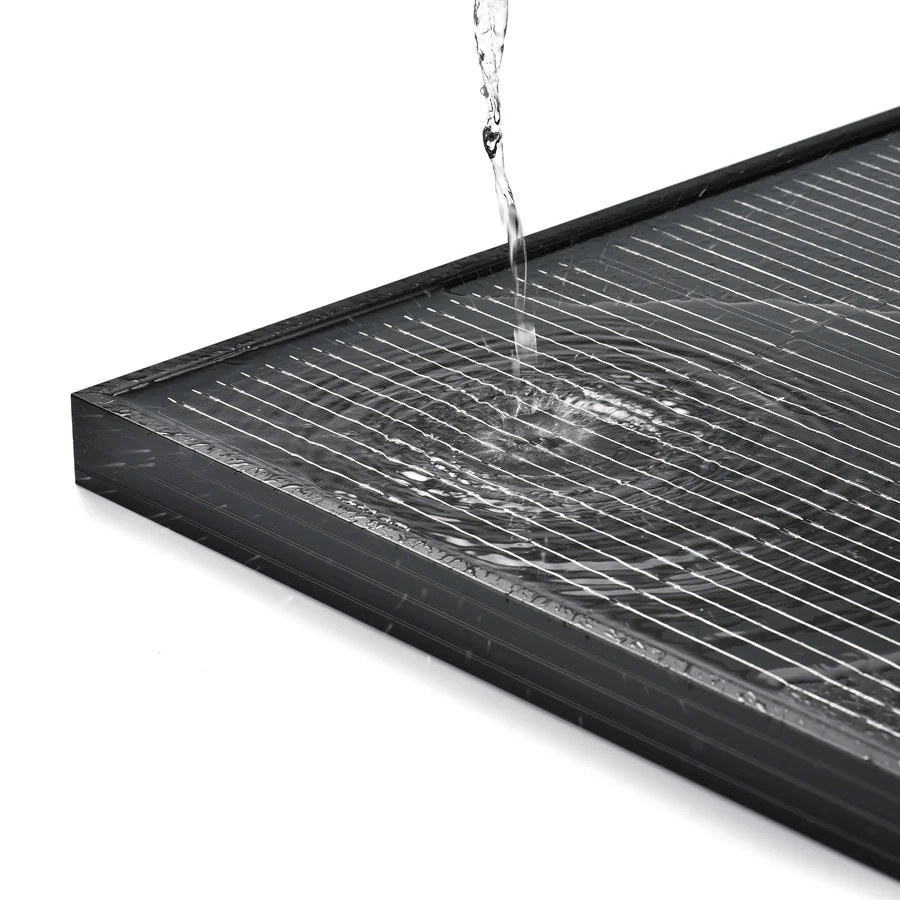

Built with strong high transmission “Anti-reflective” coated tempered glass, and an anodized aluminum frame.
Simple Installation
Easy installation and handling for various applications (high-end off-grid and mobile applications). Pre-drilled holes are compatible with ground mounts, Z brackets, pole mounts, and tilt mounts. Compatible with on-grid and off-grid inverters.
Warranty
25-year output warranty
10-year workmanship warranty
