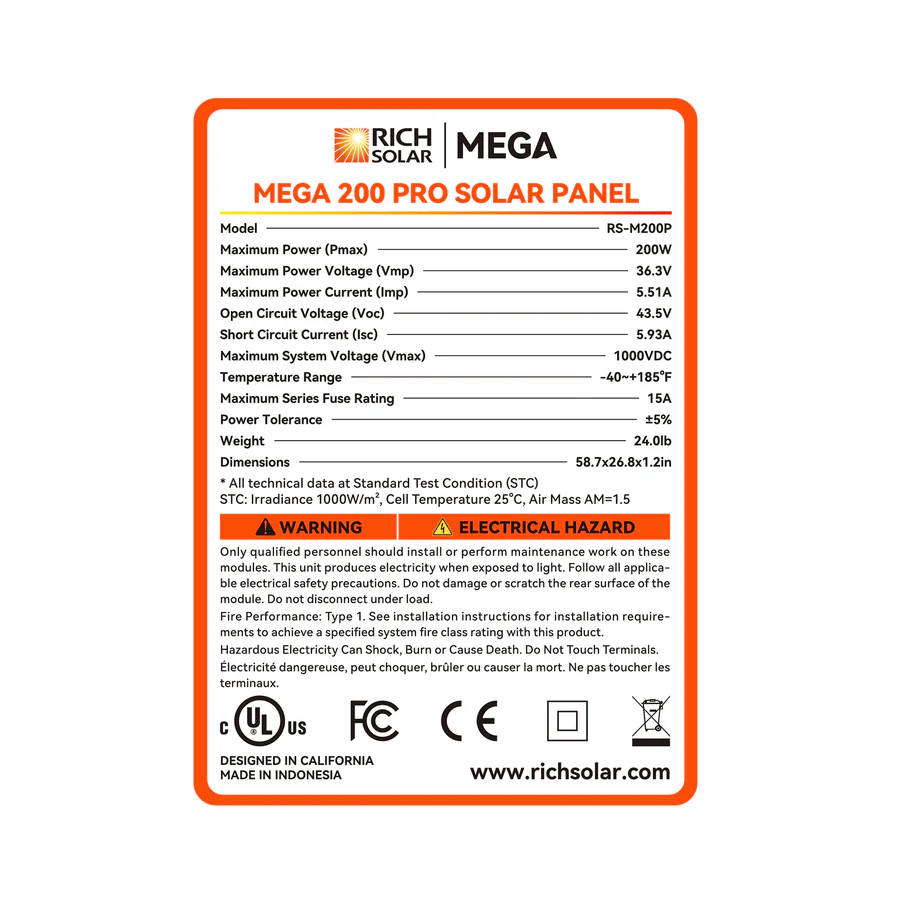

Maximum Power(Pmax)
200W
Maximum Power Voltage(Vmp)
36.3V
Maximum Power Current(Imp)
5.51A
Open Circuit Voltage(Voc)
43.5V
Short Circuit Current(Isc)
5.93A
Maximum System Voltage
1000 VDC
Maximum Series Fuse Rating
15A
Temperature Range
-40 ~ +185°F
Weight
24.0 lb

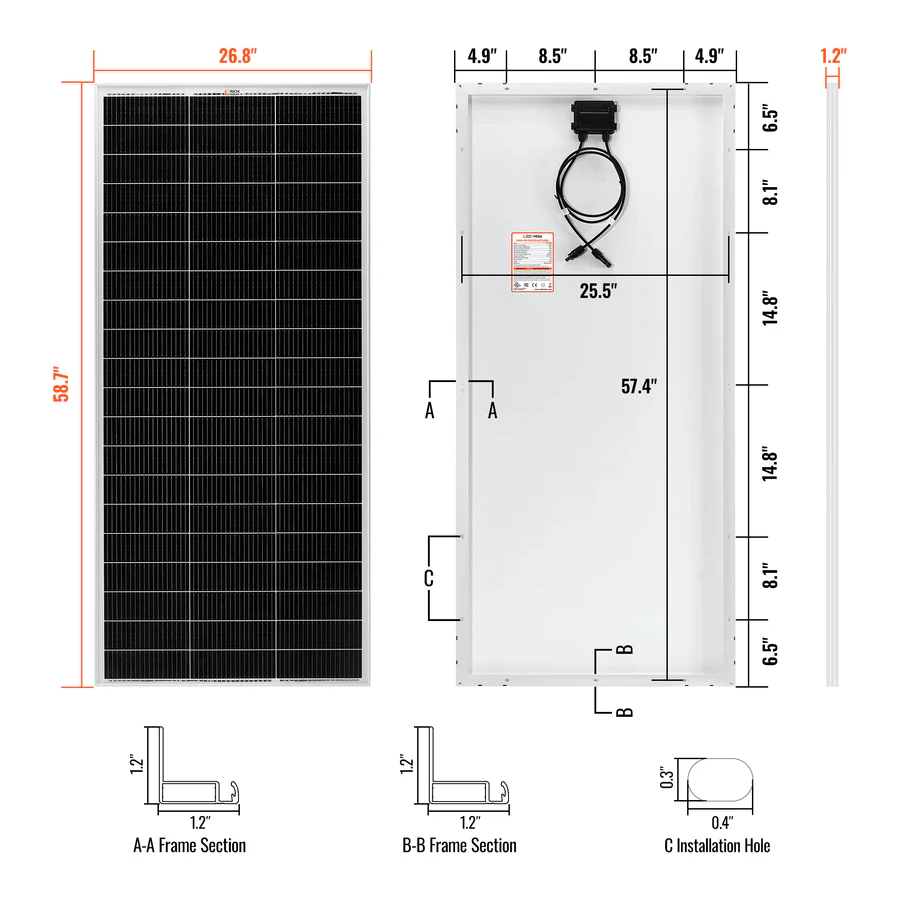

Dimensions
58.7 x 26.8 x 1.2 in
Industry Standard

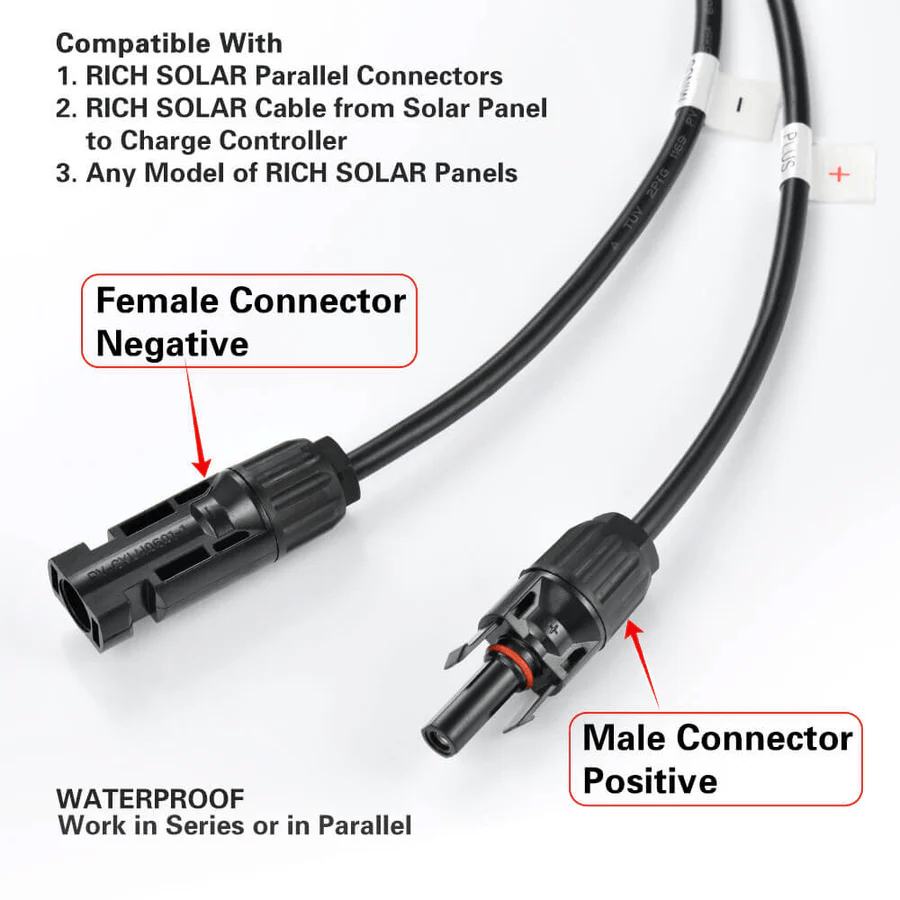

Generates 5.51A of power, charges 24-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
High Performance
Excellent low-light performance even on early mornings, evenings, and cloudy days.
Rugged Durability

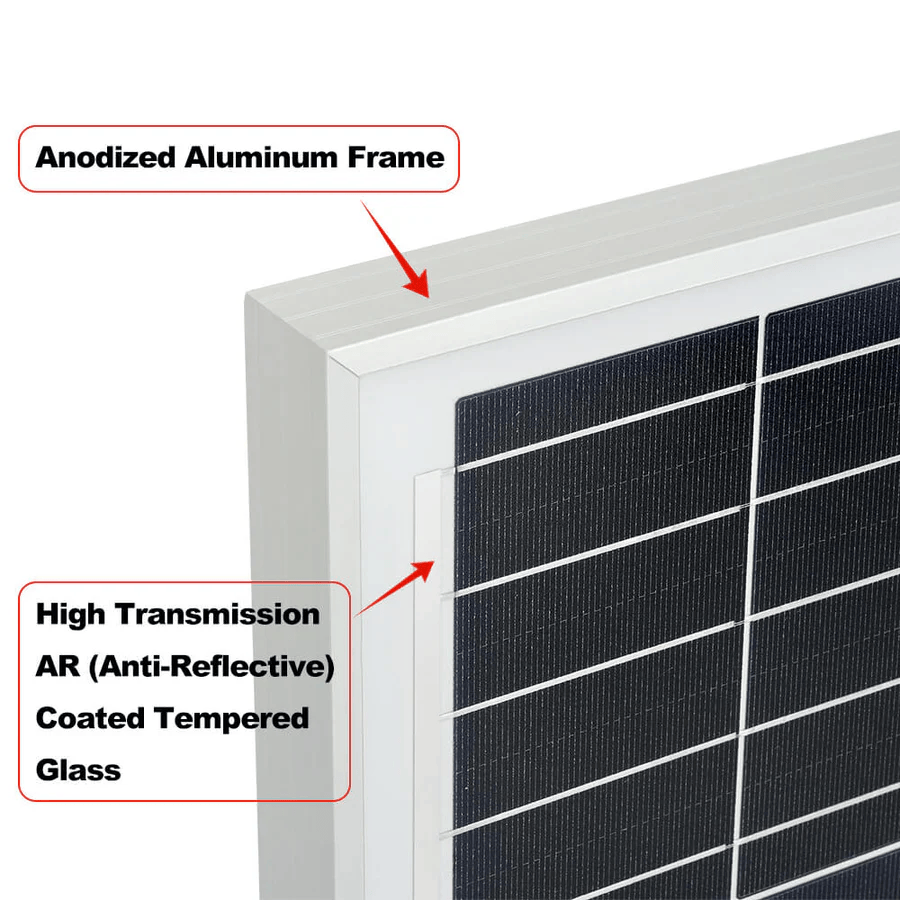

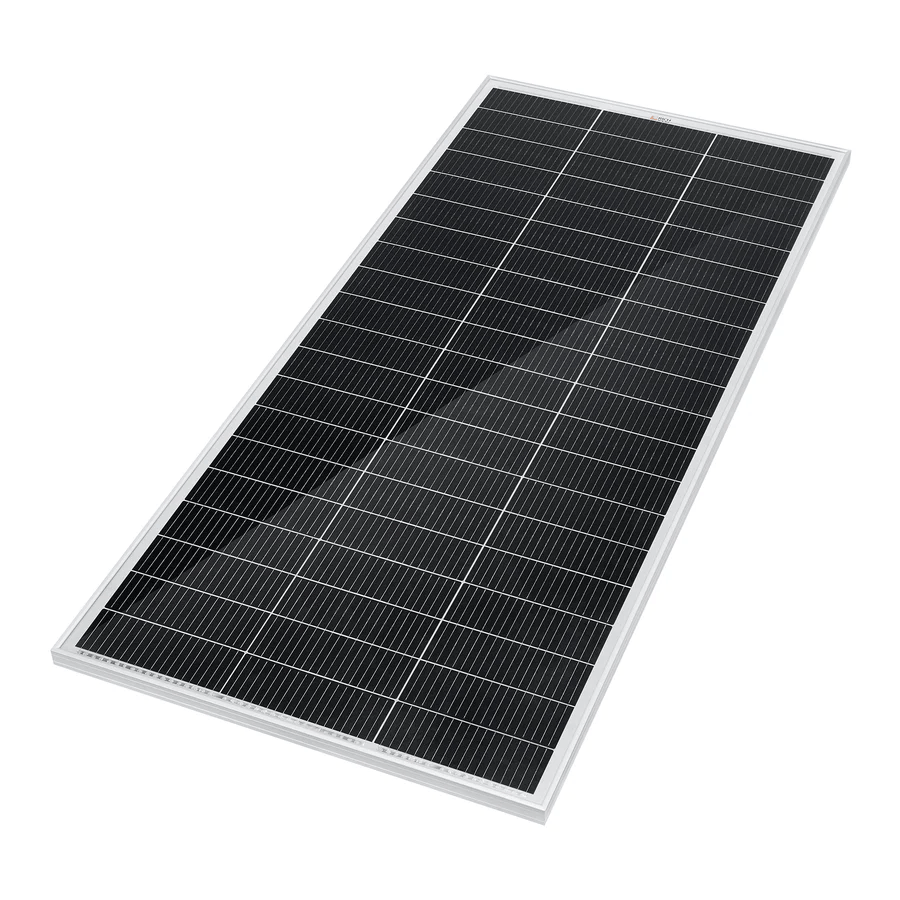

Built with strong high transmission “Anti-reflective” coated tempered glass, and an anodized aluminum frame.
Simple Installation

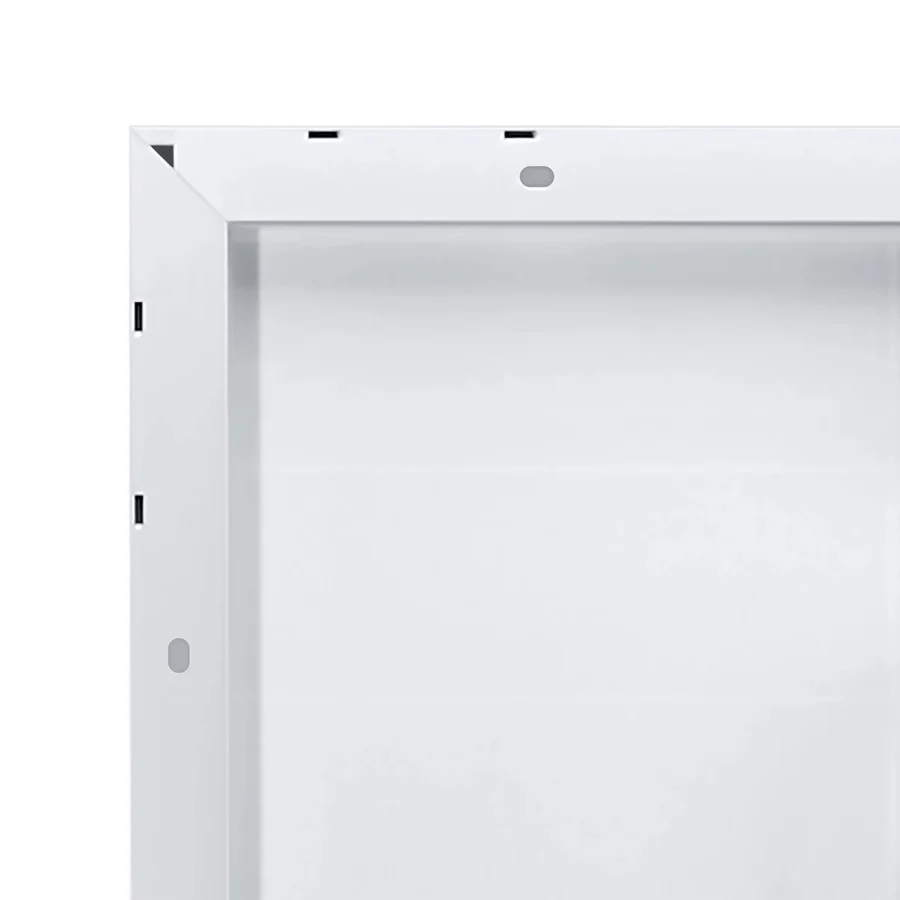

Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
Warranty
25-year limited warranty for power output; 10-year workmanship warranty.
Full Specification: Click Here
