MEGA 150 | 150 Watt Solar Panel | Lightweight 12V Off-Grid Solar Panel for RVs, Cabins, Boats | 25-Year Output Warranty | UL Certified

Features

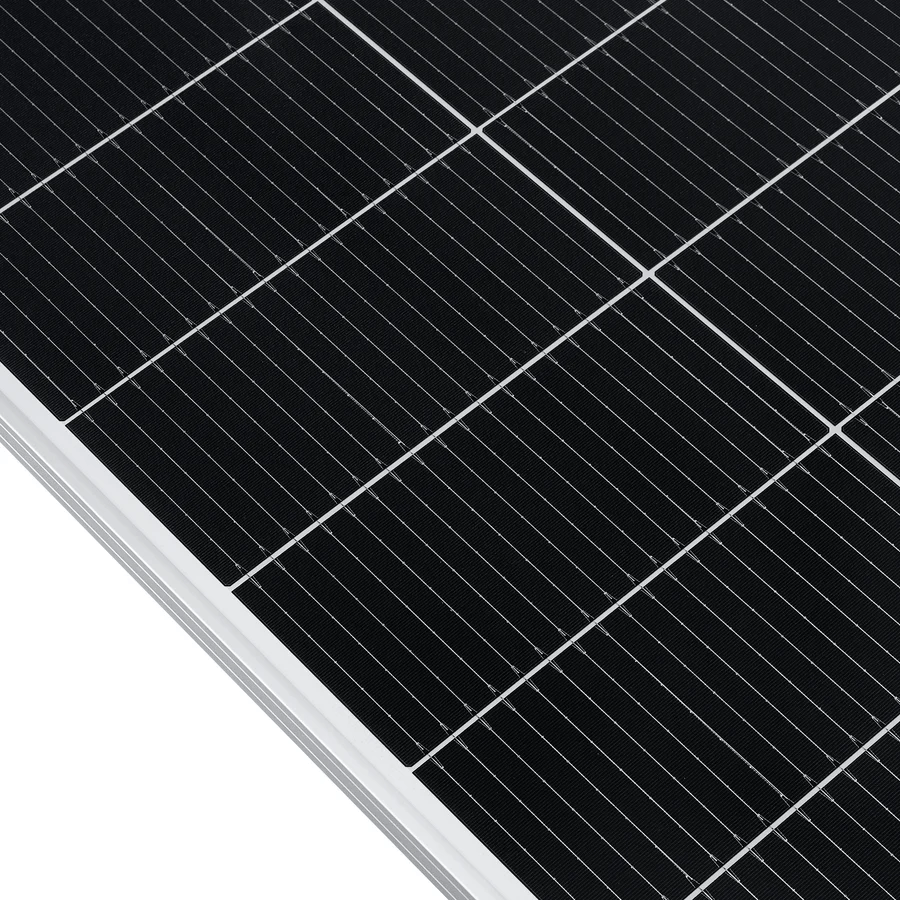

• 18 busbar solar cell configuration

• Lightweight anodized aluminum frame

• High Transmission, AR (anti-reflective) Coated Tempered Glass

• Plug-and-play junction box

• Industry-standard quick-connect cables work in series or parallel

• Certified to withstand challenging environmental conditions

• Excellent low-light performance on cloudy days, mornings, and evenings

Installation

• Easy installation and handling for various applications (high-end off-grid and mobile applications)

• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts

• Compatible with on-grid and off-grid inverters

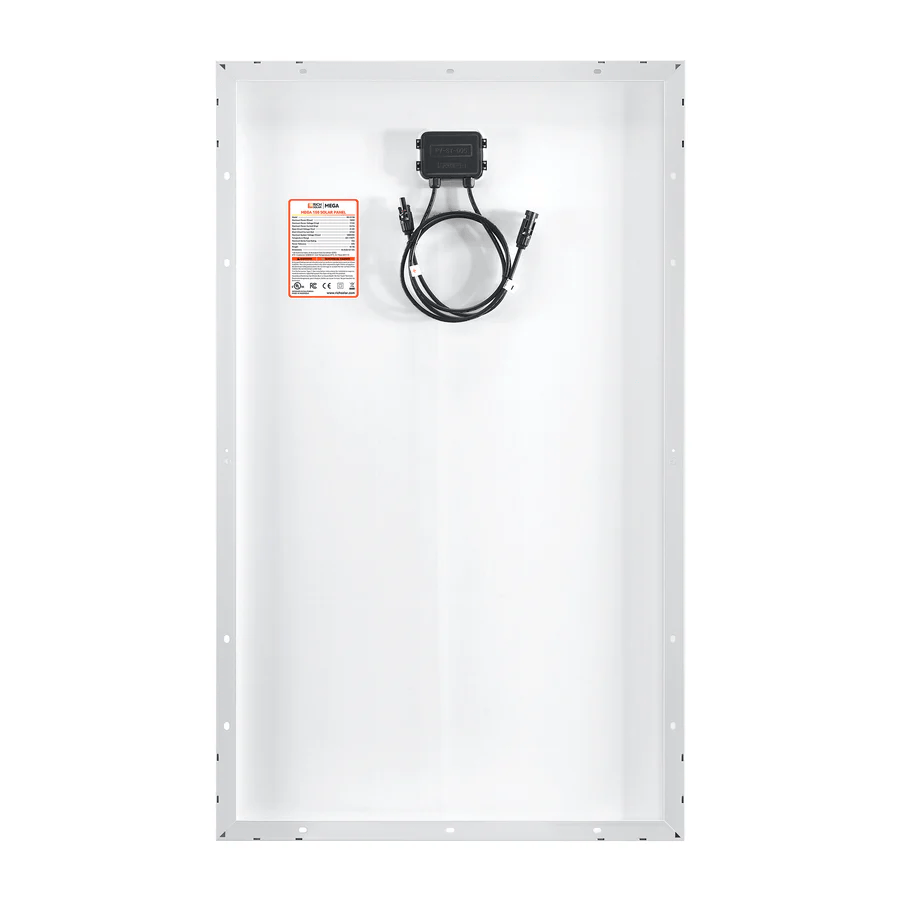

Built-in Components

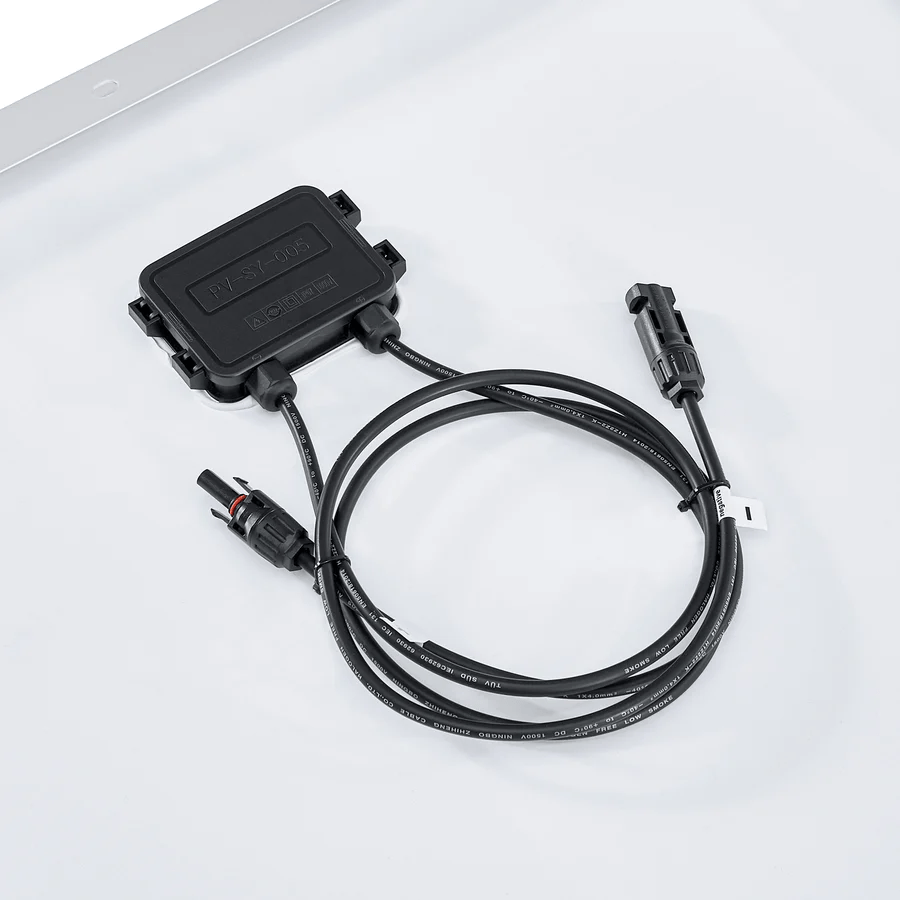

• Panel leads (pair): 3 feet each

• IP67-rated waterproof junction box

• IP67-rated waterproof solar connectors

• Bypass diodes built into the junction box

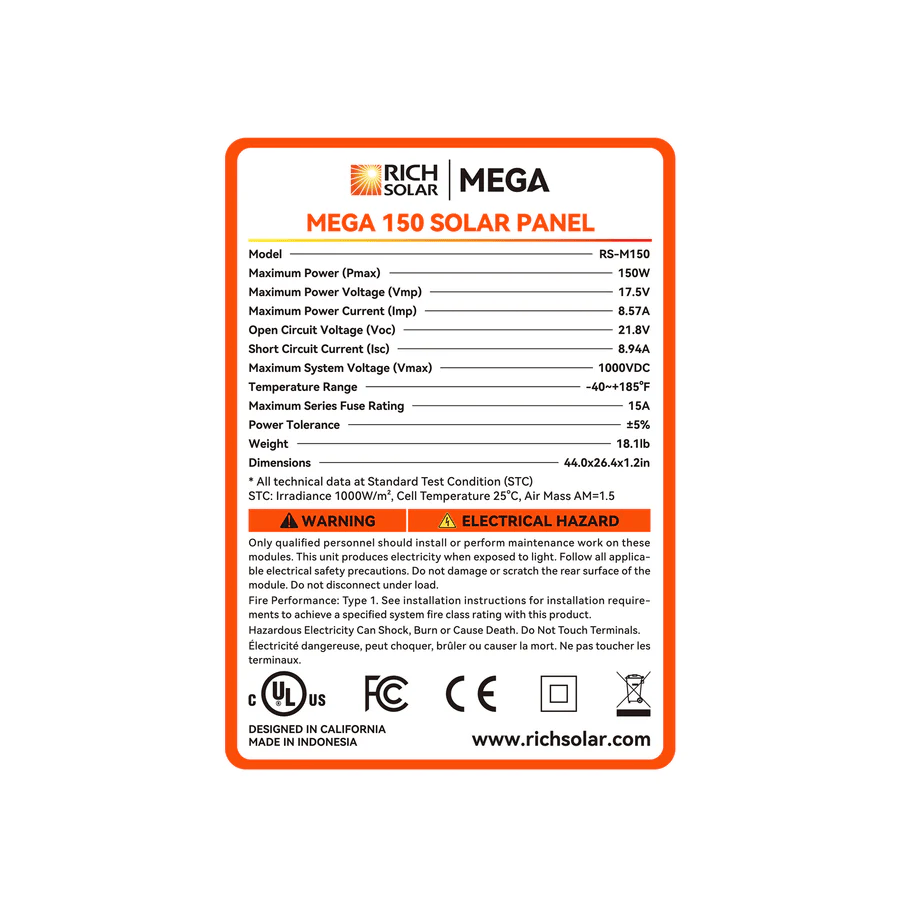

Specifications

• Model: RS-M150

• Maximum Power (Pmax): 150 W

• Maximum Power Voltage (Vmp): 17.5 V

• Maximum Power Current (Imp): 8.57 A

• Open Circuit Voltage (Voc): 21.8 V

• Short Circuit Current (Isc): 8.94 A

• Maximum System Voltage (Vmax): 1000 VDC

• Maximum Series Fuse Rating: 15A

• Temperature Range: -40 ~ +185°F

• Weight: 18.1 lb

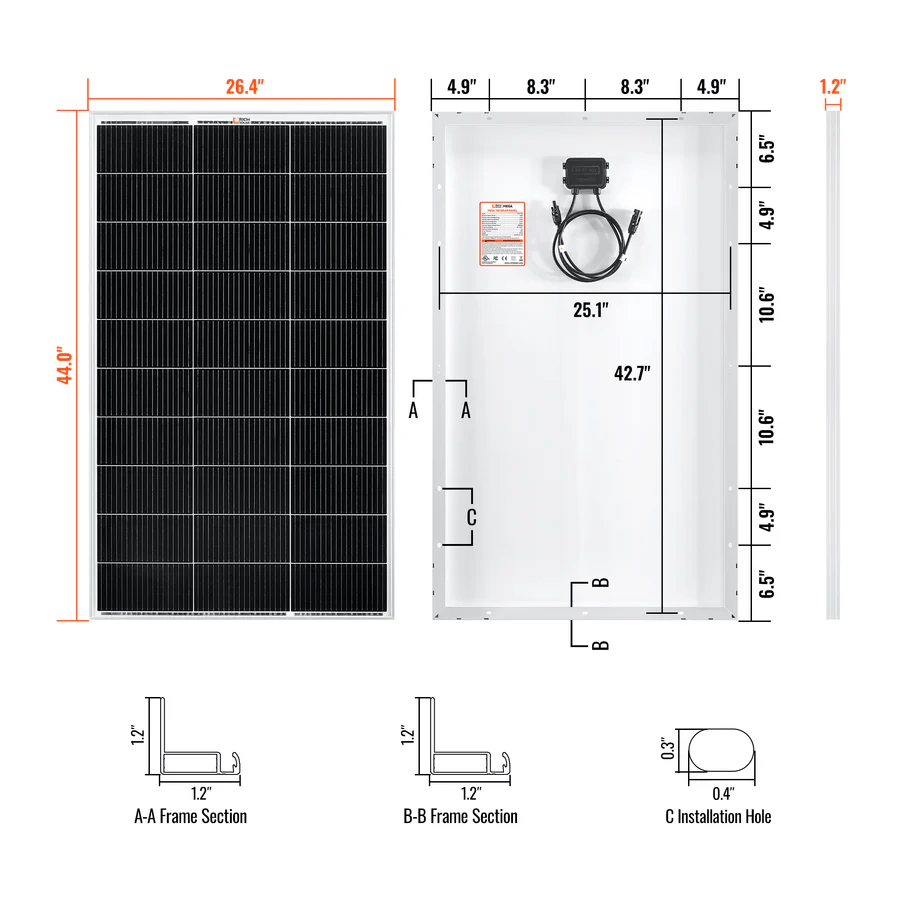

• Dimensions: 44.0 x 26.4 x 1.2 in

• Full Specification: Click Here
