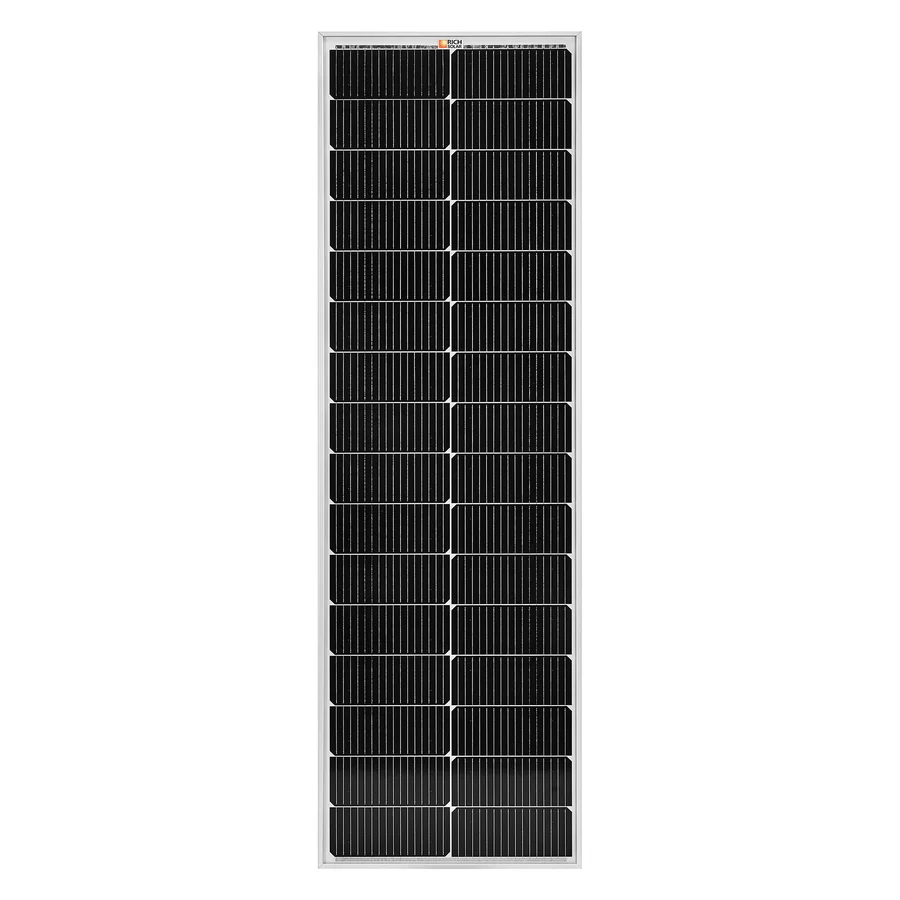

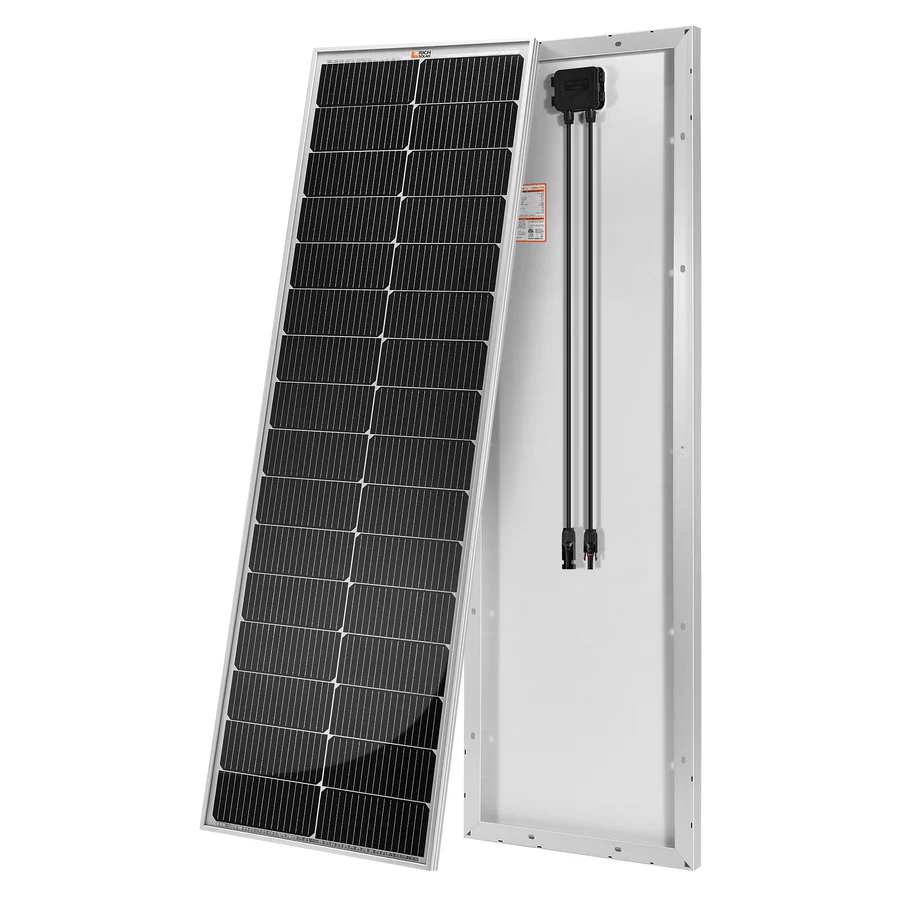

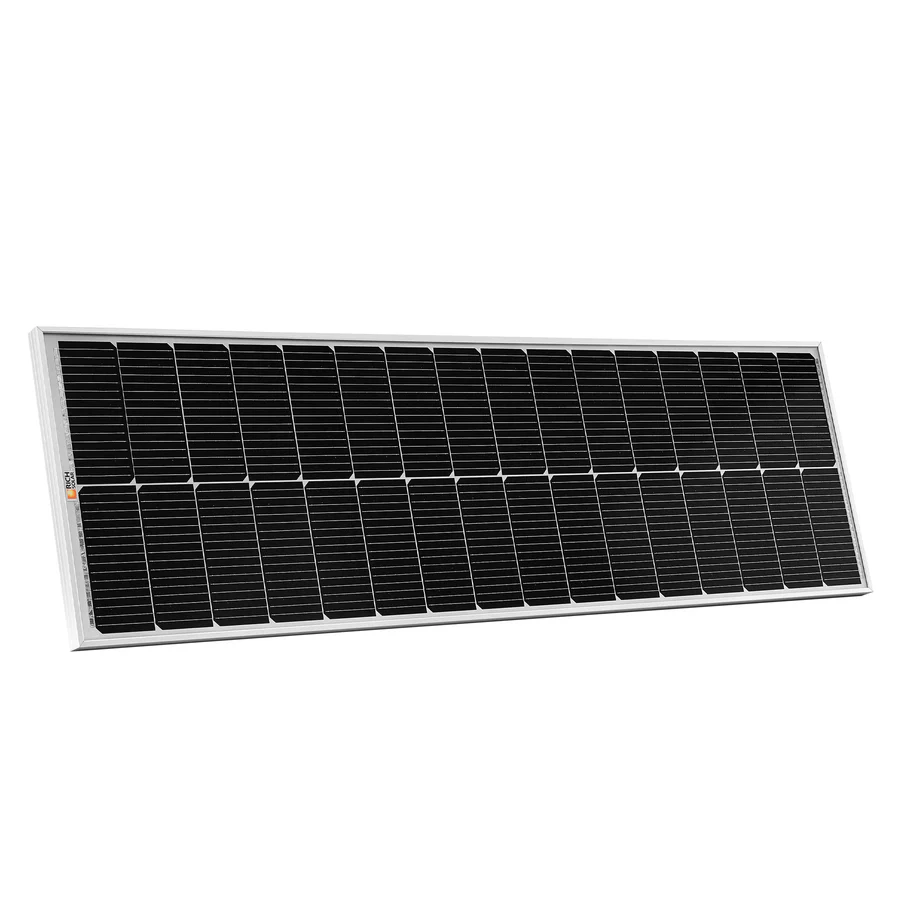

MEGA 100 SLIM | 100 Watt Slim Solar Panel | Compact 12V Off-Grid Narrow Solar Panel for Campers, Overlanders, Boats | 25-Year Output Warranty | UL Certified

Features

• 12V off-grid solar panel.

• 0~+5W guaranteed positive power output.

• IP 65 or IP 67 rated.

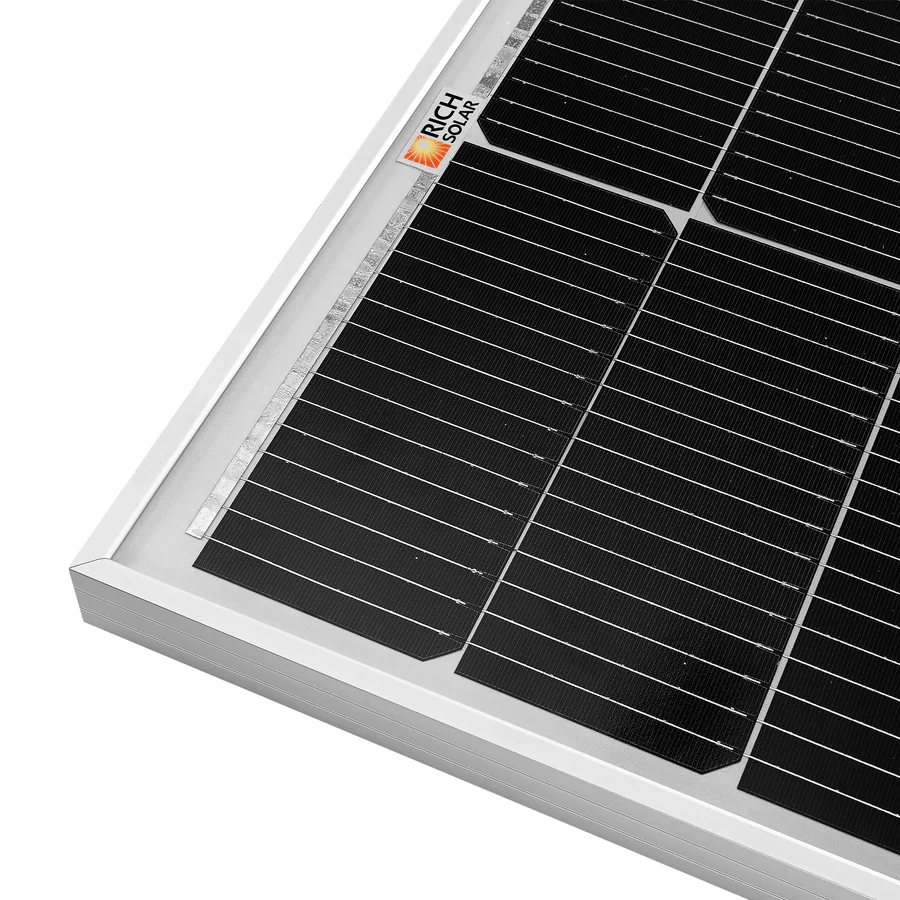

• Built with strong tempered glass and aluminum frame.

• Certified to withstand challenging environmental conditions.

• Excellent low-light performance on cloudy days, mornings and evenings.

Installation

• Easy installation and handling for various applications.

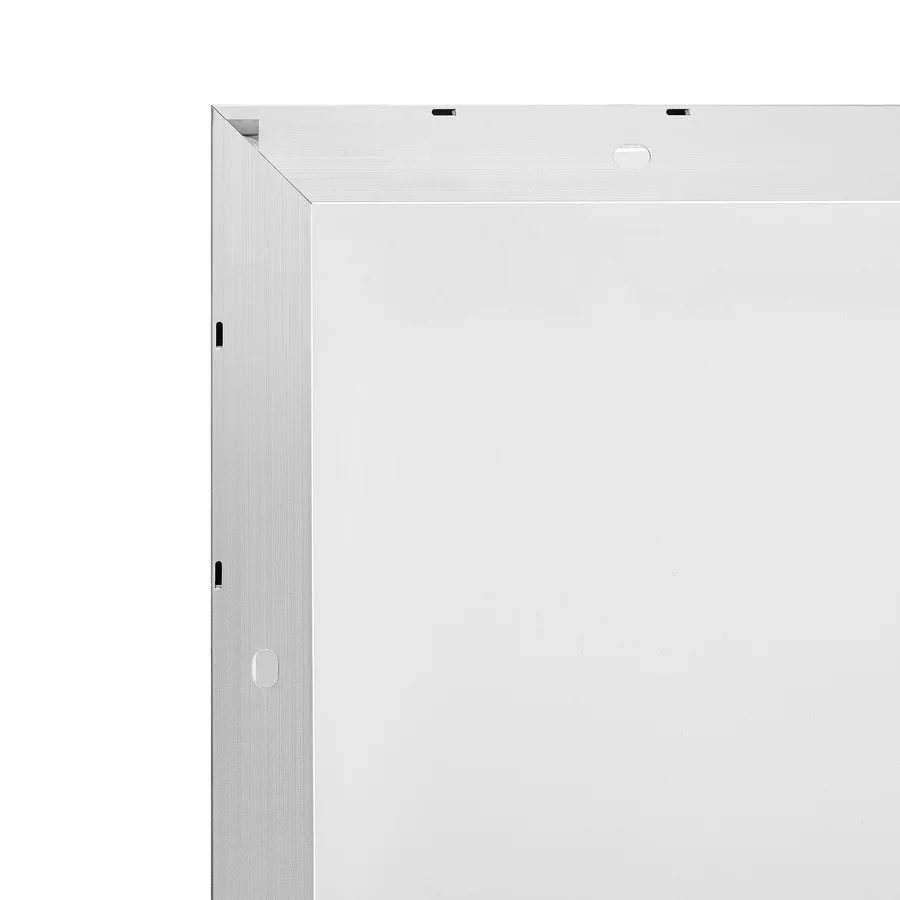

• Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.

• Compatible with on-grid and off-grid inverters.

Warranty

• 25-year output warranty

• 10-year workmanship warranty

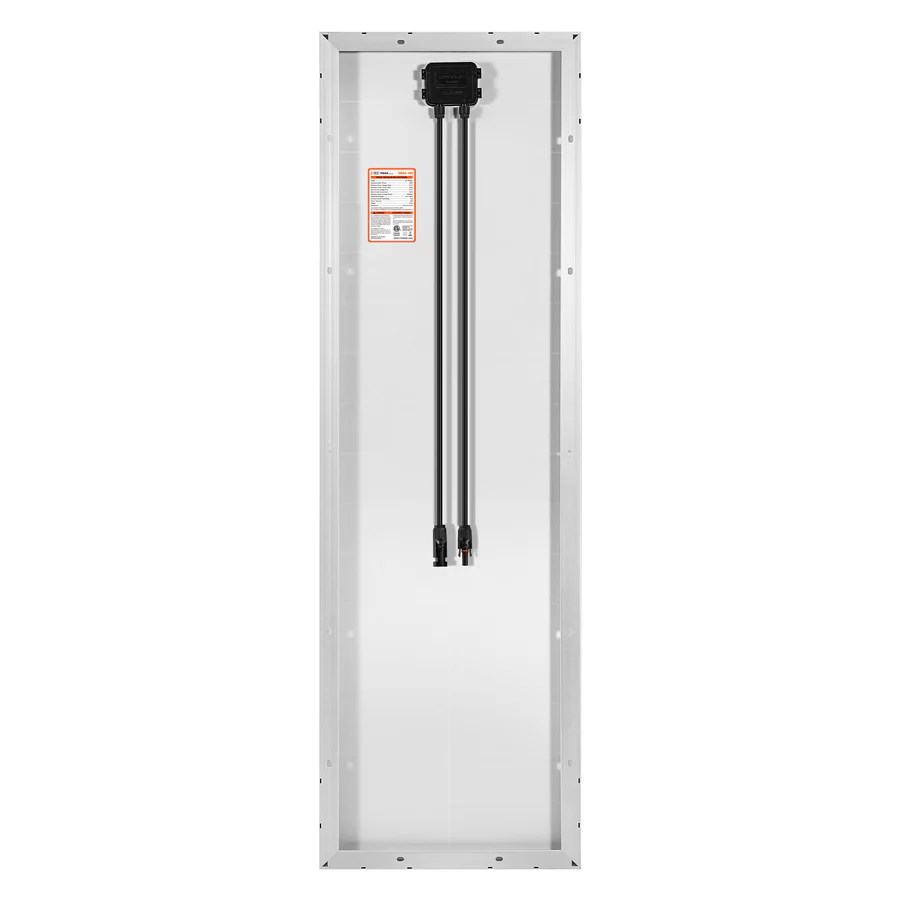

Built-in Components

• Panel Leads (Pair): 12AWG

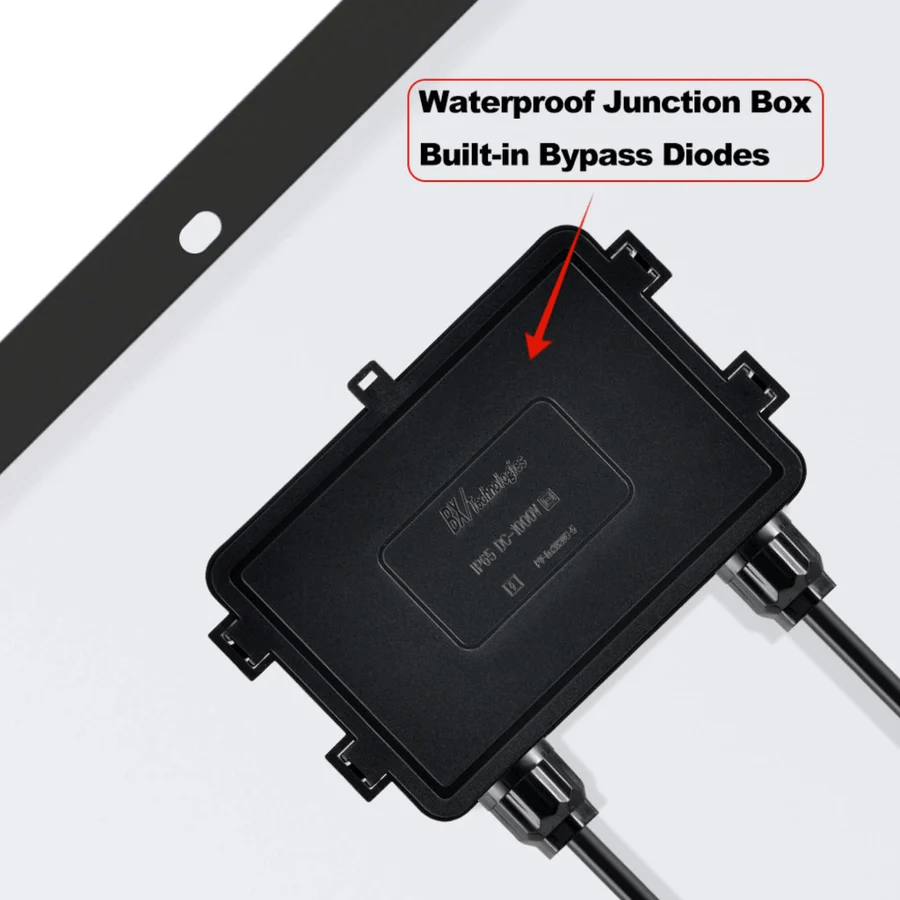

• IP65-rated waterproof junction box

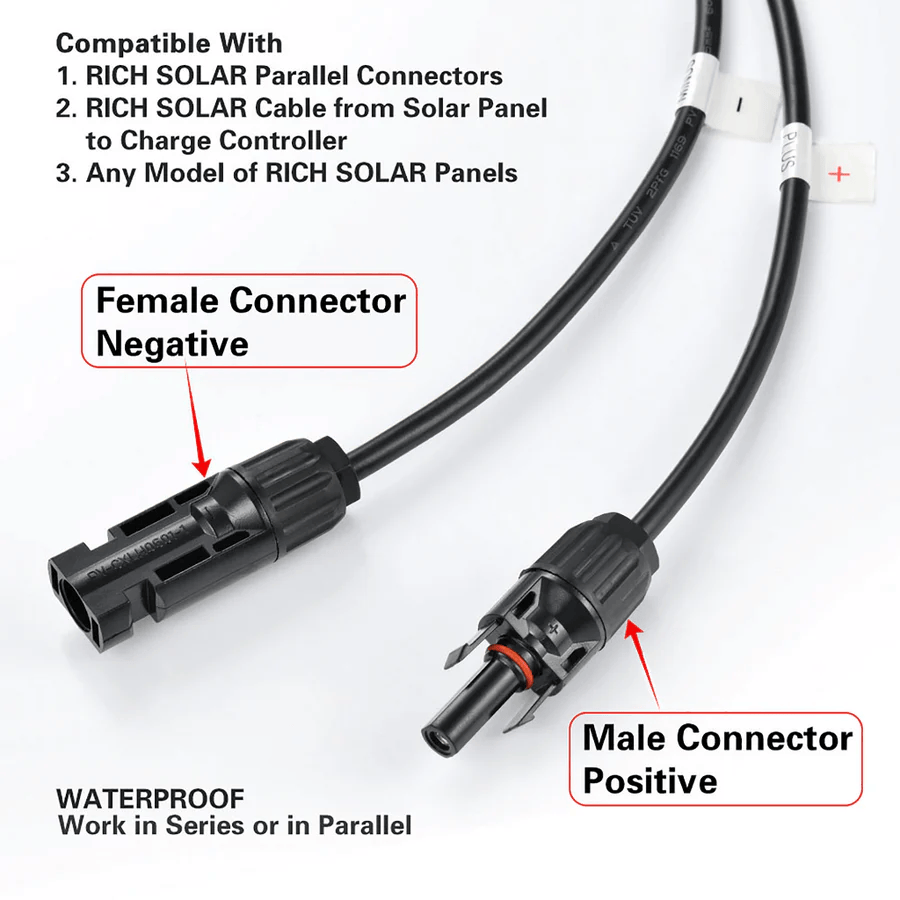

• IP67-rated waterproof solar connectors

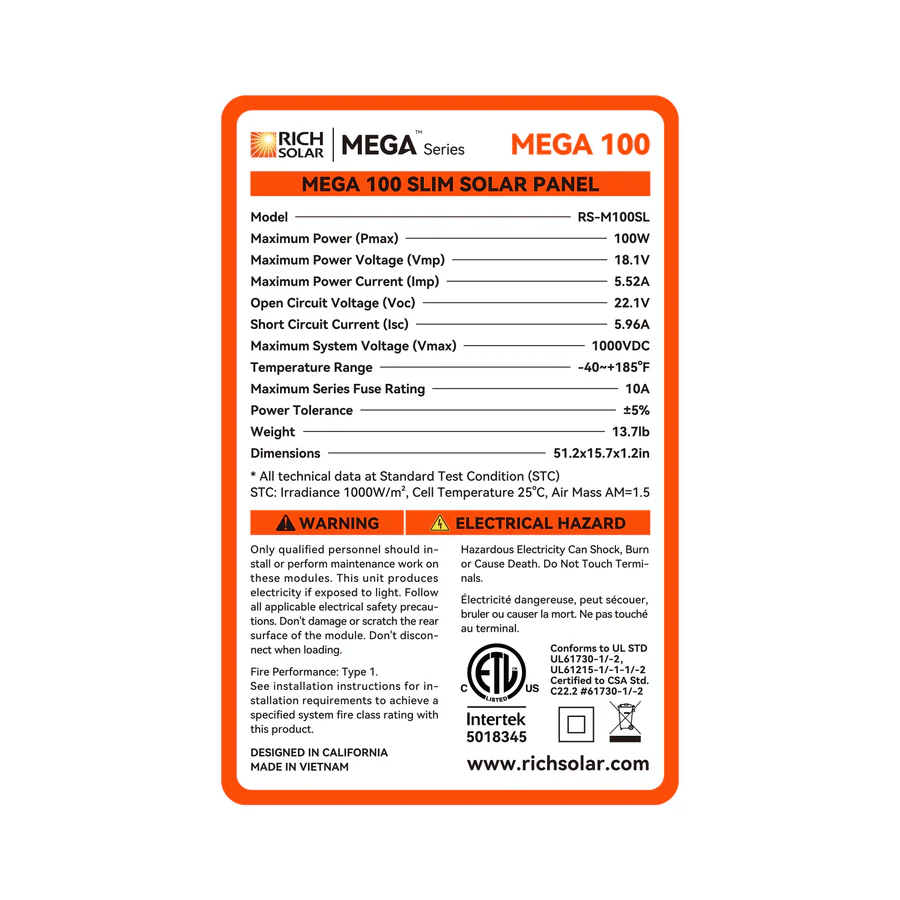

Specifications

• Maximum Power(Pmax): 100W

• Maximum Power Voltage(Vmp): 18.1V

• Maximum Power Current(Imp): 5.52A

• Open Circuit Voltage(Voc): 22.1V

• Short Circuit Current(Isc): 5.96A

• Maximum System Voltage(Vmax): 1000VDC

• Weight: 13.7b

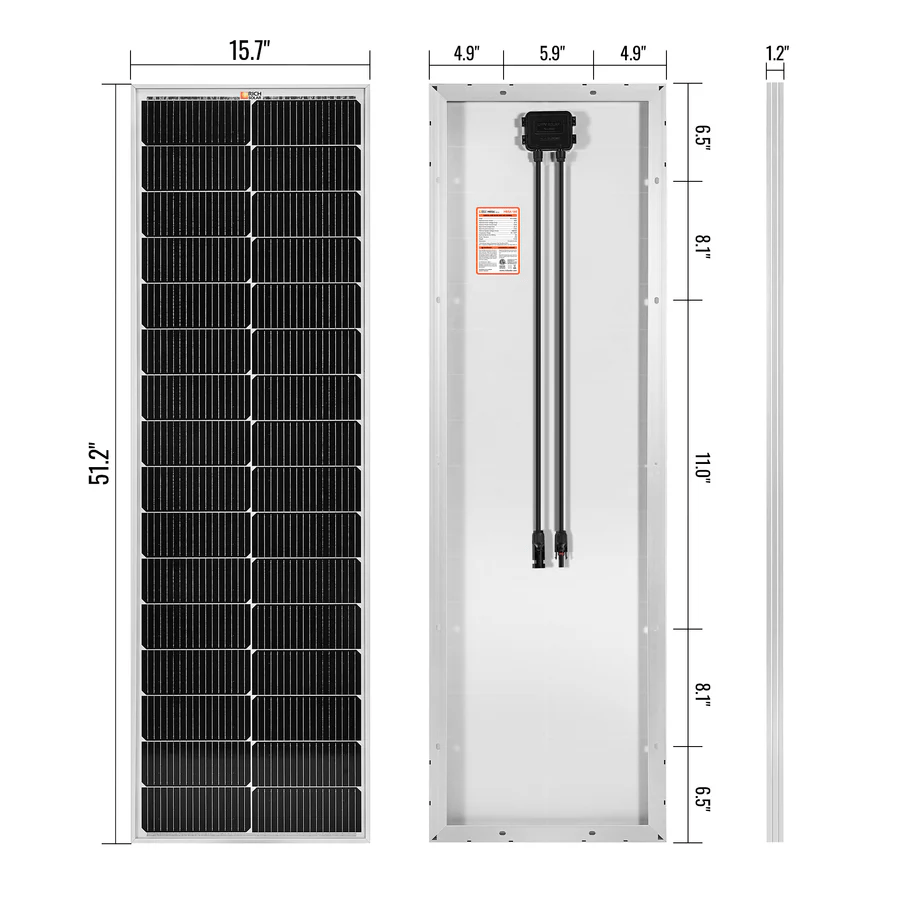

• Dimensions: 51.2 x 15.7 x 1.2 in

• Full Specification: Click Here
