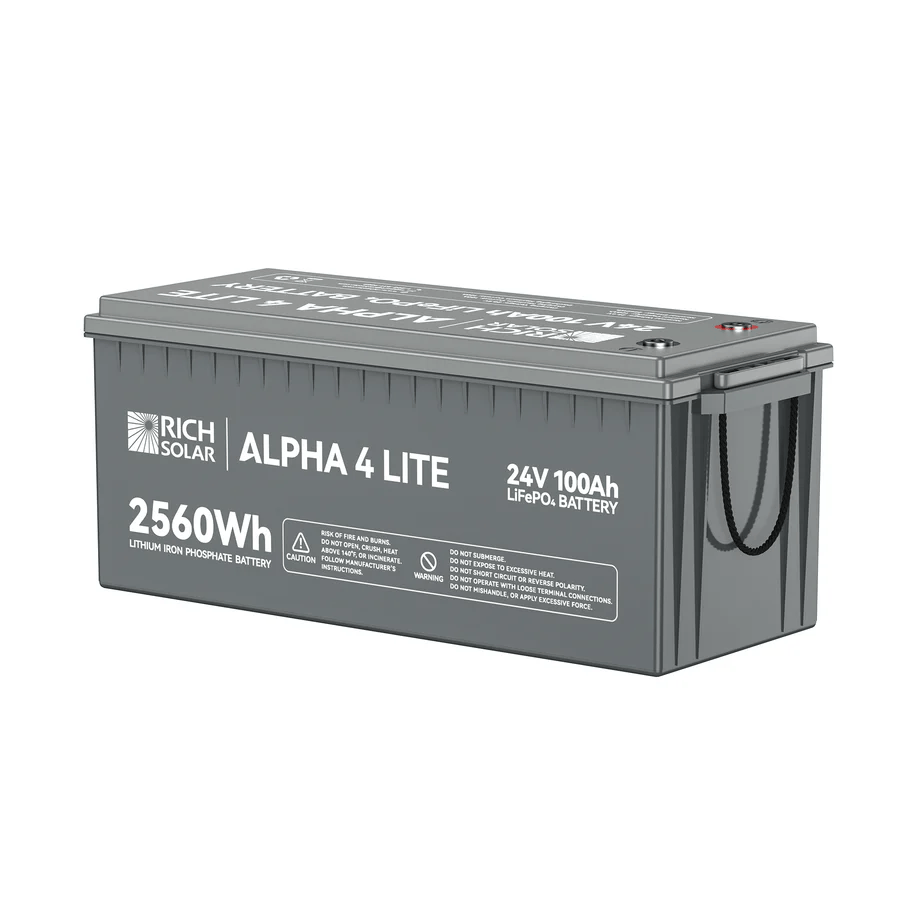

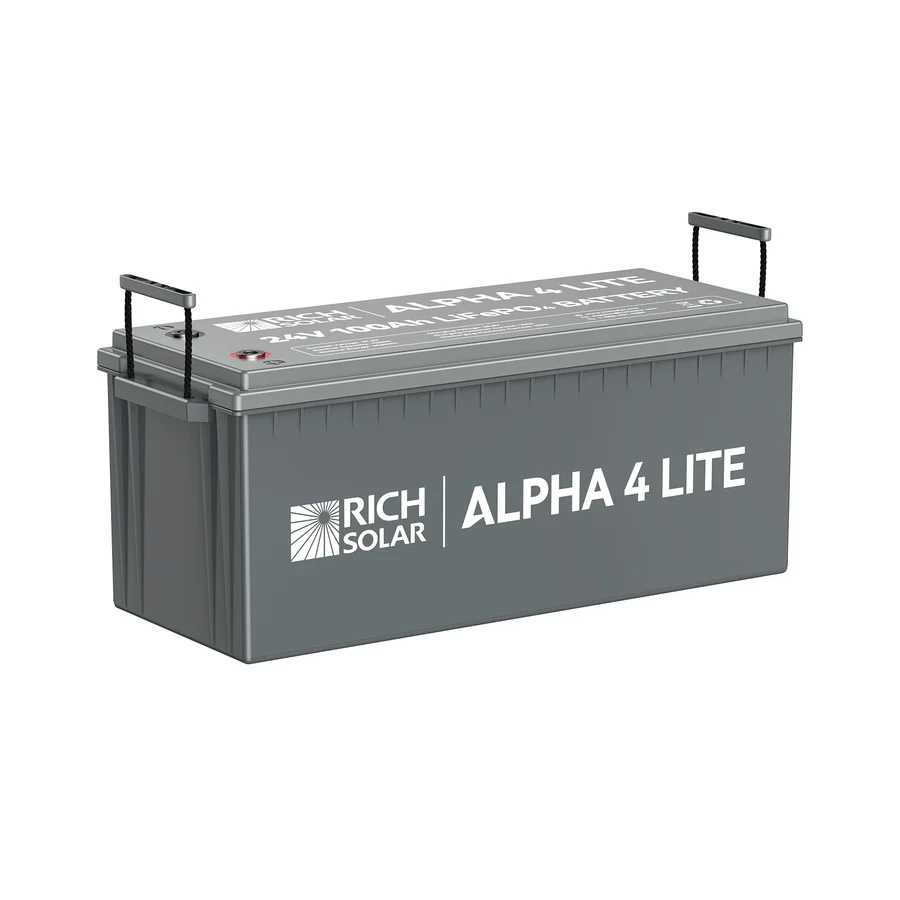

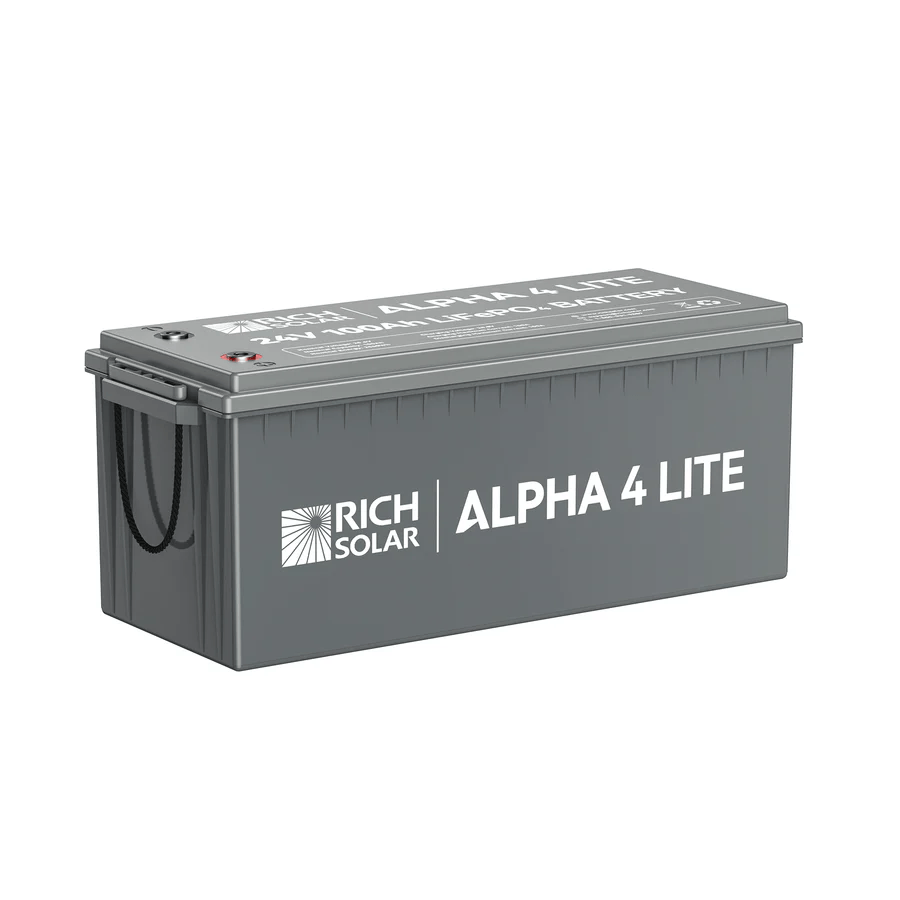

ALPHA 4 LITE | 24V 100Ah LiFePO4 Battery | Fast-Charging 24V Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid, Backup | 4,000 Lifetime Cycles | Best Value

Premium Energy, No Fuss

If you're looking to get the most out of your battery without worrying about it breaking down on you, the ALPHA 4 LITE is the 24V 200Ah LiFePO4 battery that provides you with all the energy you need. Built with RICH SOLAR's quality materials and boasting 2560Wh, you won't have to worry about running out of energy wherever you are.

With a durable and lightweight design that's packed with individually fused lithium cells, the ALPHA 4 LITE is the no-nonsense battery for people looking to get up and go.

Specifications

BATTERY

Nominal Voltage:

25.6V

Nominal Capacity:

100Ah

Minimum Capacity:

99.5Ah

Cycle Life:

> 4000 cycles

Operating Specifications

Capacity:

100Ah

Energy:

2560 Watt Hours

Charge Voltage:

28.8V

Continuous Discharge Current:

100A

Self Discharge:

< 5%/month

Temperature Performance

Charge Temperature:

32℉ to 131℉ (0℃ to 55℃)

Discharge Temperature:

-4℉ to 140℉ (-20℃ to 60℃)

Storage Temperature:

14°F-113°F / -10℃~45℃ 90％RH Max (More than 3 months)

Physical Specifications

Battery Dimensions(LxWxH):

20.9x8.1x8.5 in

Weight:

52.9 lb

Full Specification: Click Here

BMS Operation

Over Charge Protection

Over charge detection voltage:

3.75V±0.05V

Over charge detection delay time:

1000ms±500ms

Over charge recovery voltage:

3.55V±0.05V

Over Discharge Protection

Over discharge detection voltage:

2.20V±0.08V

Over discharge detection delay time:

1000ms±500ms

Over discharge recovery voltage:

2.70V±0.10V

Short Circuit Protection: Yes

Warranty: 5-year warranty
