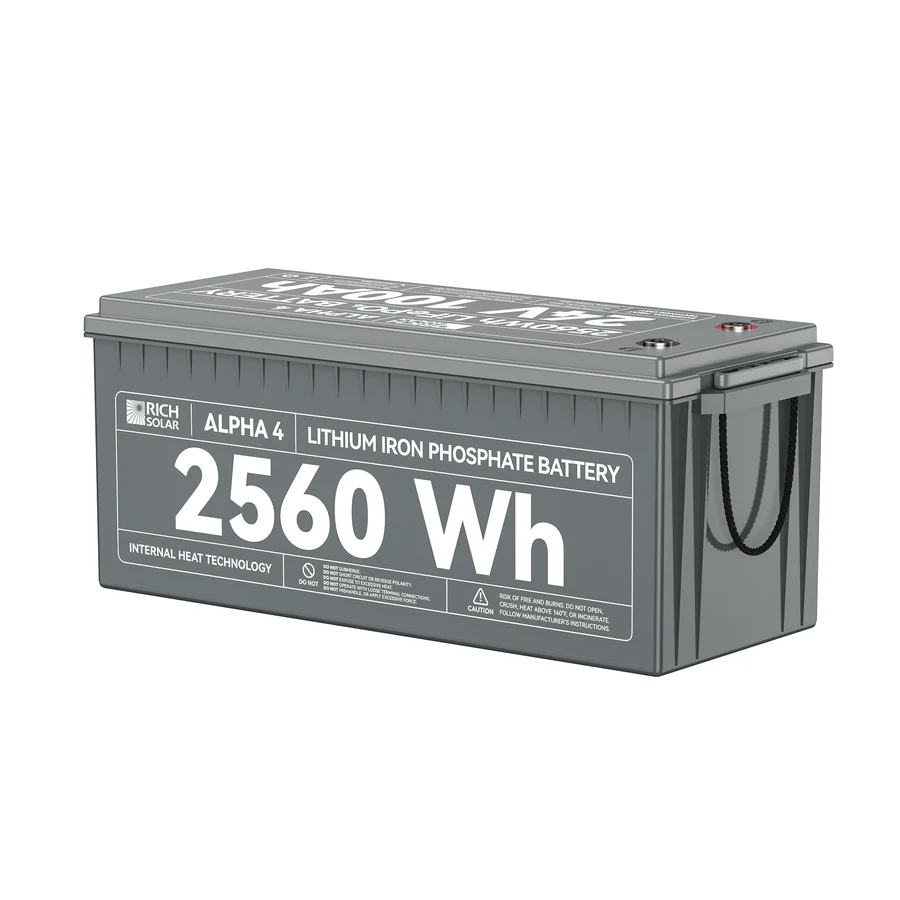

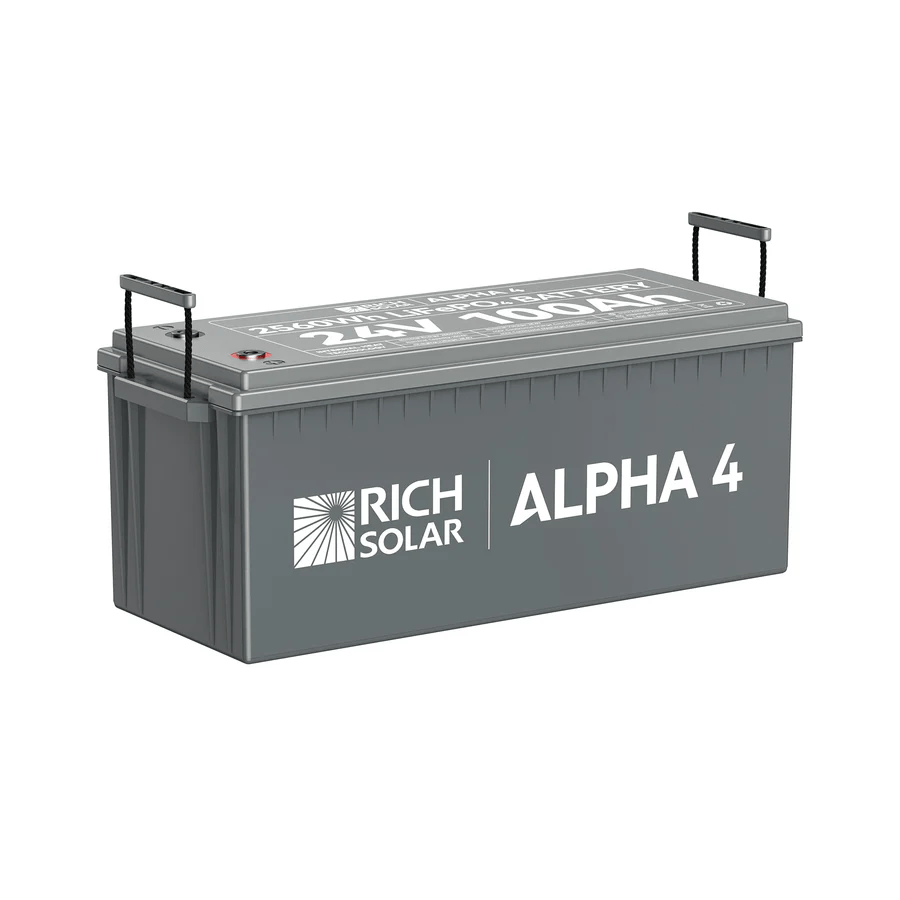

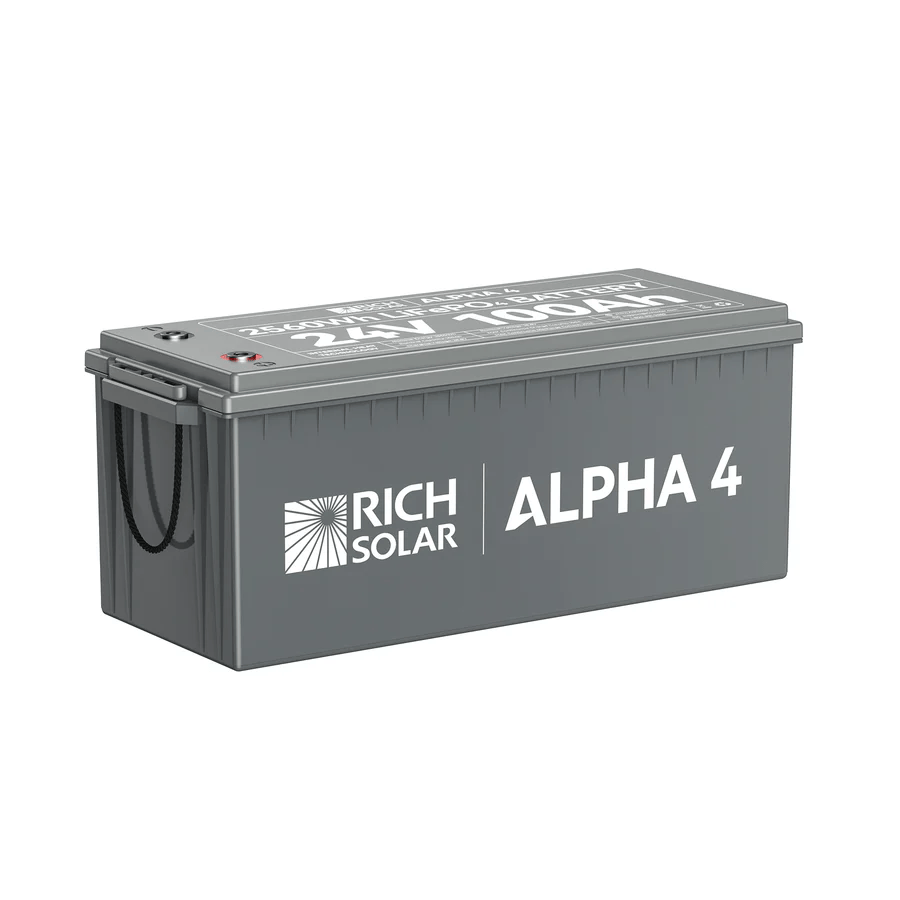

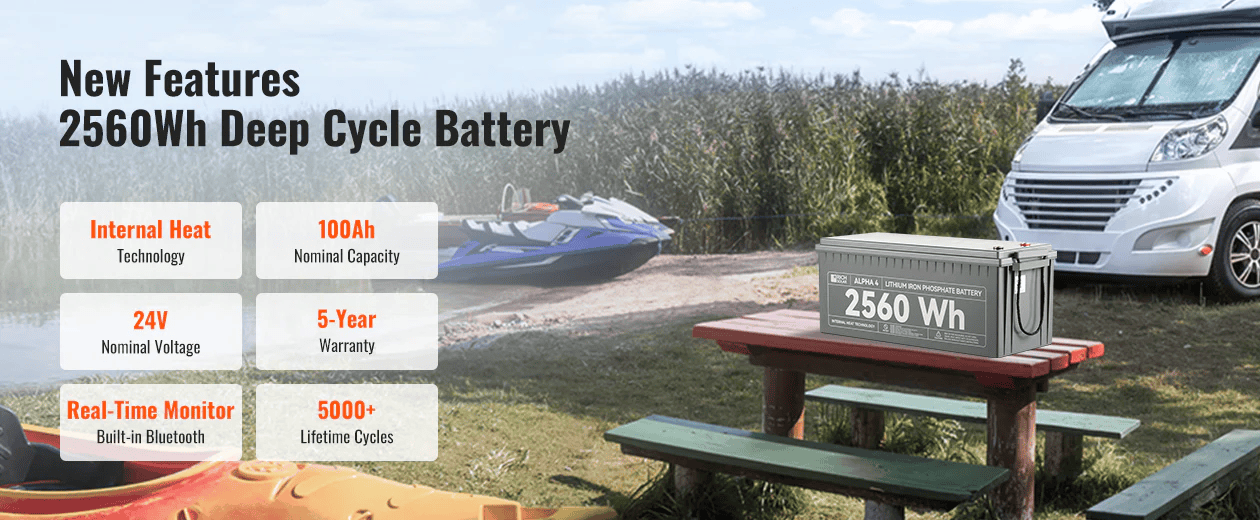

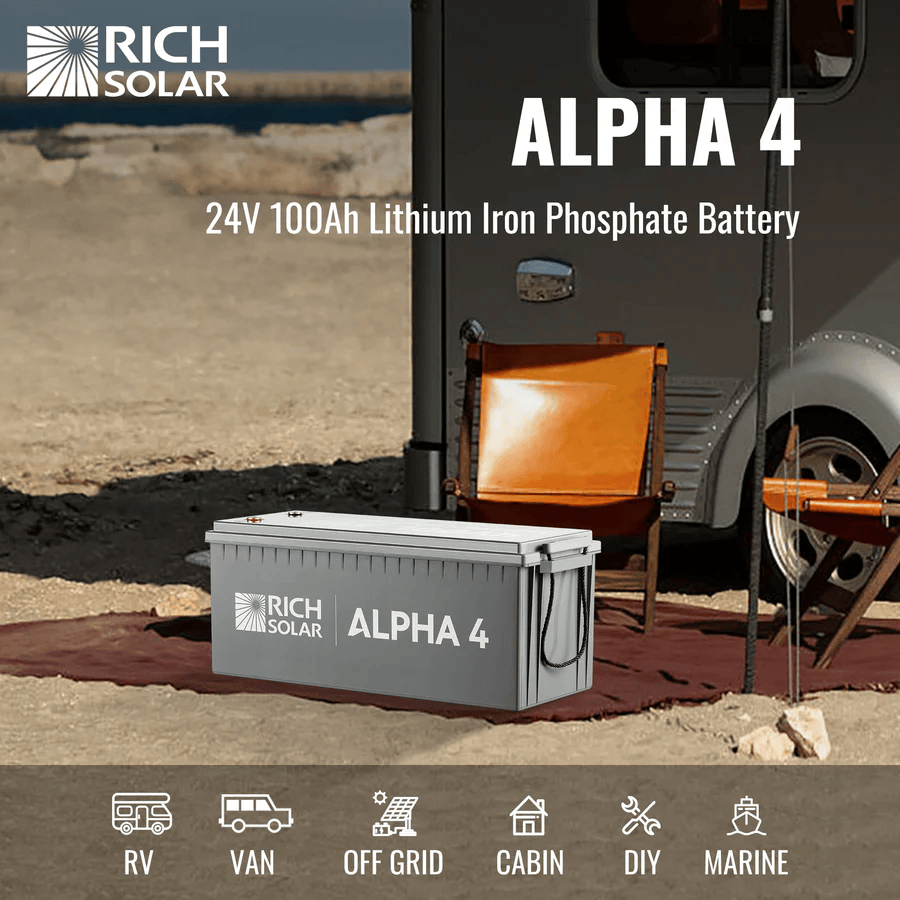

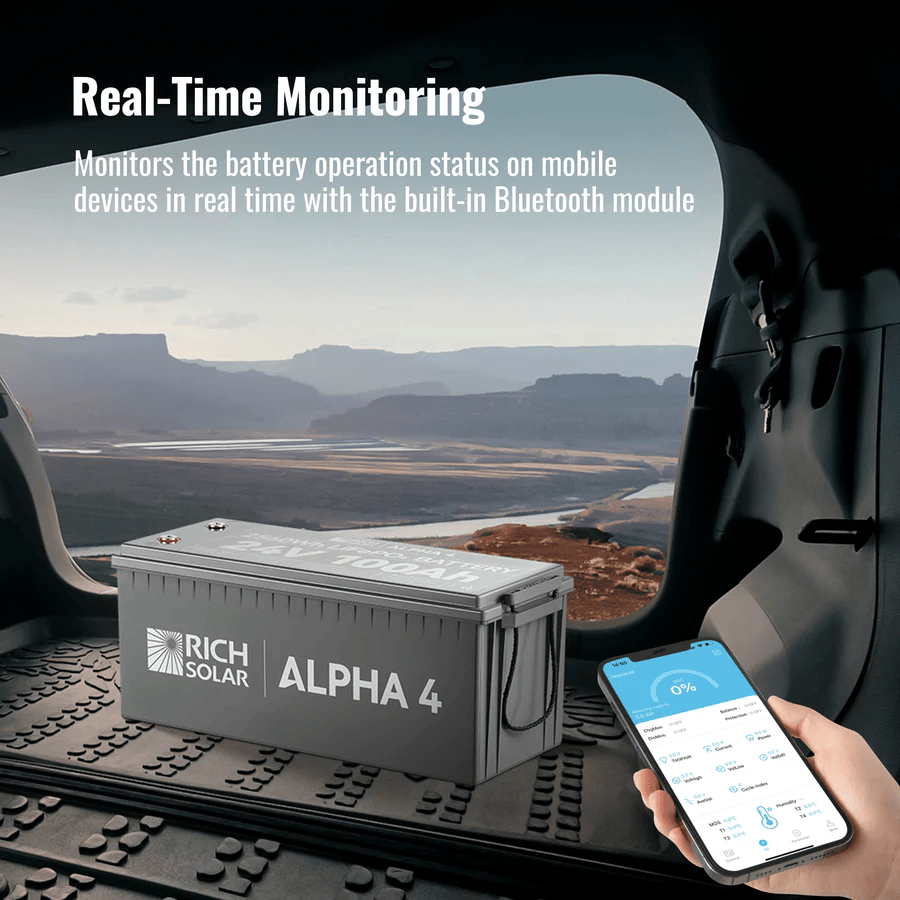

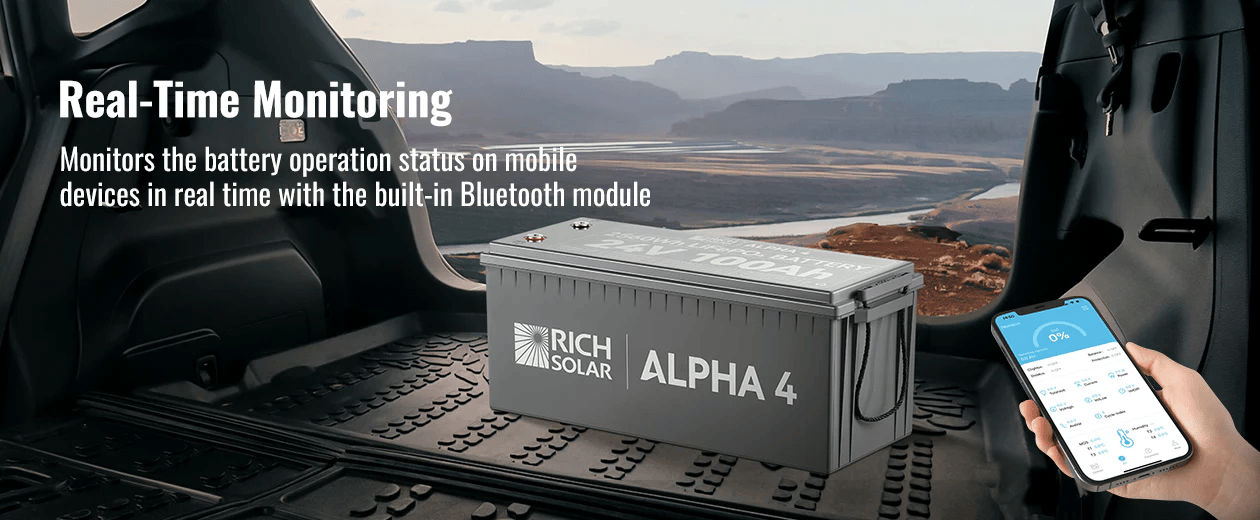

ALPHA 4 | 24V 100Ah LiFePO4 Battery | Powerful 24V Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology

Specifications

BATTERY

Cell Type:

LiFePO4 Battery

Nominal Voltage:

25.6V

Nominal Capacity:

100Ah

Nominal Energy:

2560Wh

Cycle Life:

5000 cycles

BMS

BMS:

100A

Maximum Charging Current:

100A

Maximum Continuous Discharge Current:

100A

Maximum Discharge Current 10 Seconds:

110A

CHARGE

Charge Method:

CC/CV

Charge Voltage:

14.4V ± 0.2V

Recommend Charge Current:

50A (0.5C)

TEMPERATURE

Charge Temperature:

32℉ to 131℉ (0℃ to 55℃)

Discharge Temperature:

-4℉ to 140℉ (-20℃ to 60℃)

Storage Temperature:

14℉ to 95℉ (-10℃ to 35℃)

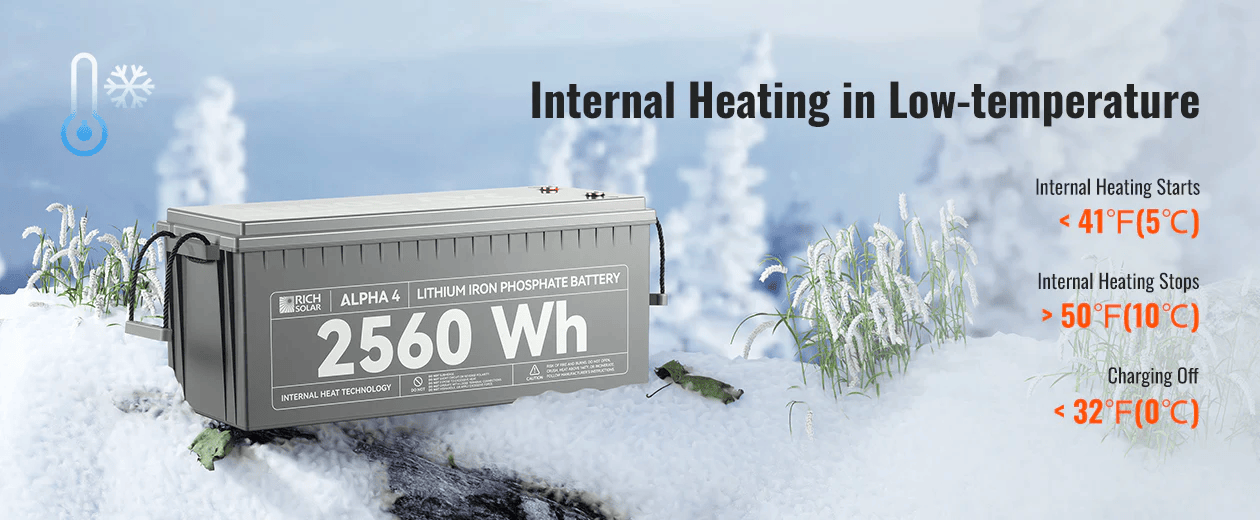

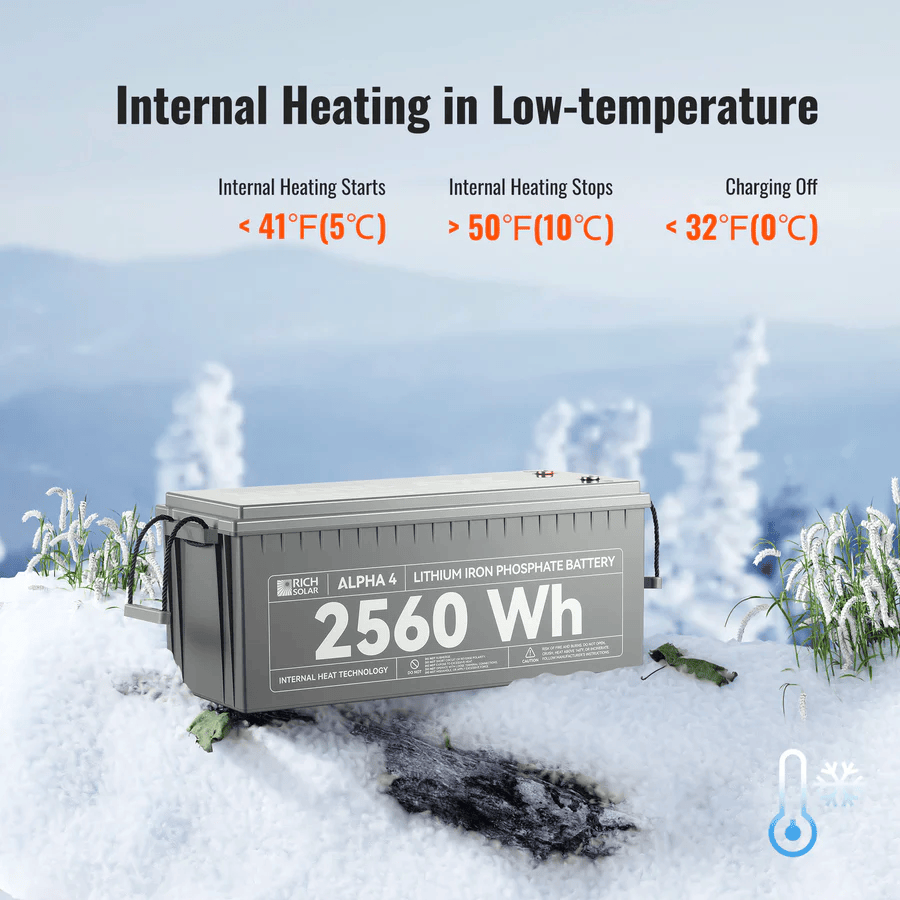

SELF-HEATING

External Power Draw:

100W

Internal Heating Starts:

< 41℉ (5℃)

Internal Heating Stops:

> 50℉ (10℃)

OTHERS

Net Battery Weight:

48.5lb

Size(LxWxH):

20.9x8.1x8.5in

Housing Material:

ABS (Flame Retardant Plastic)

Protection Class:

IP65

Full Specification: Click Here

Warranty:

5 Years
