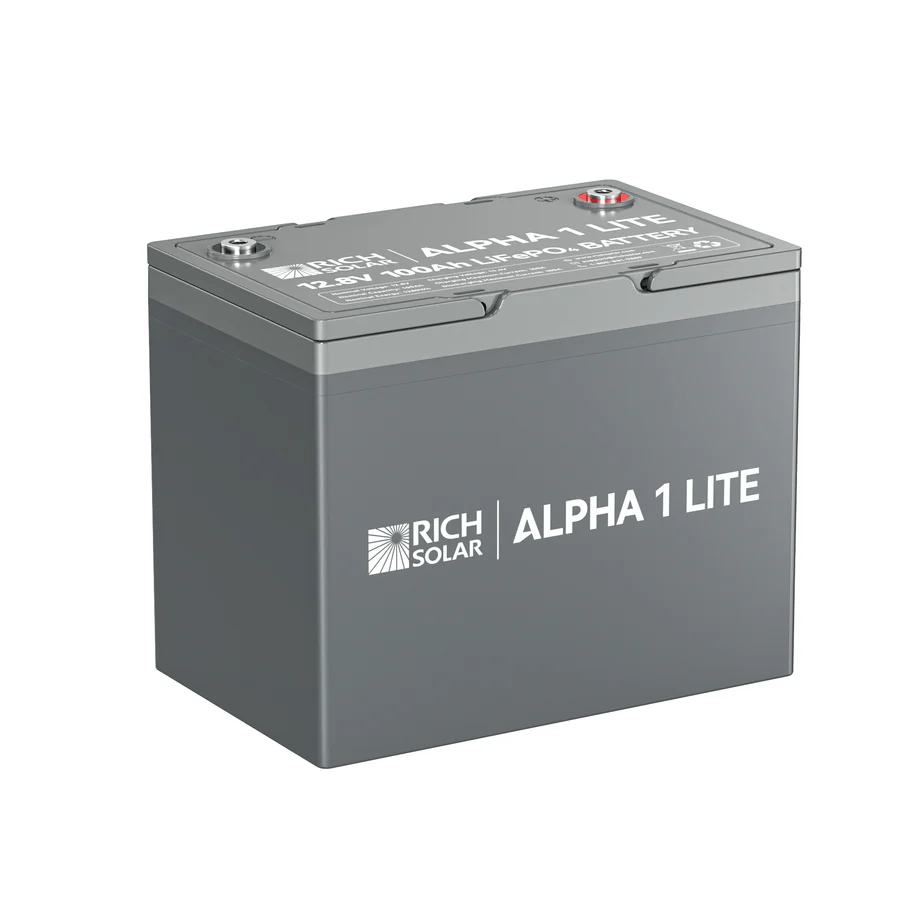

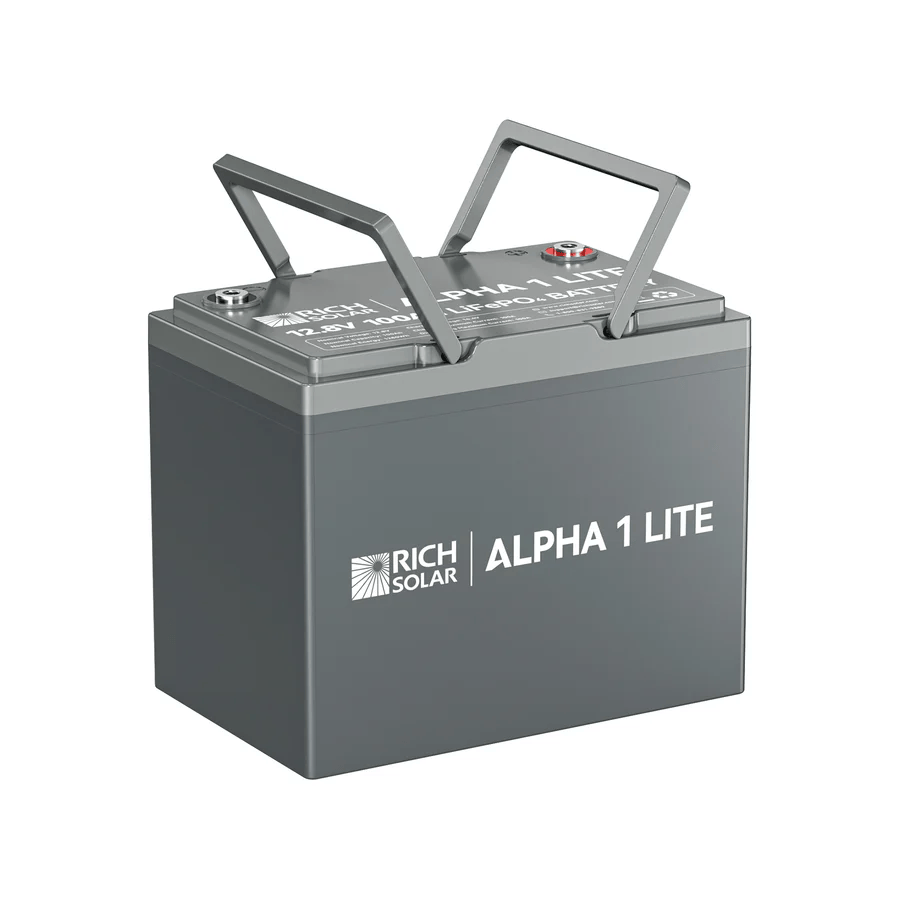

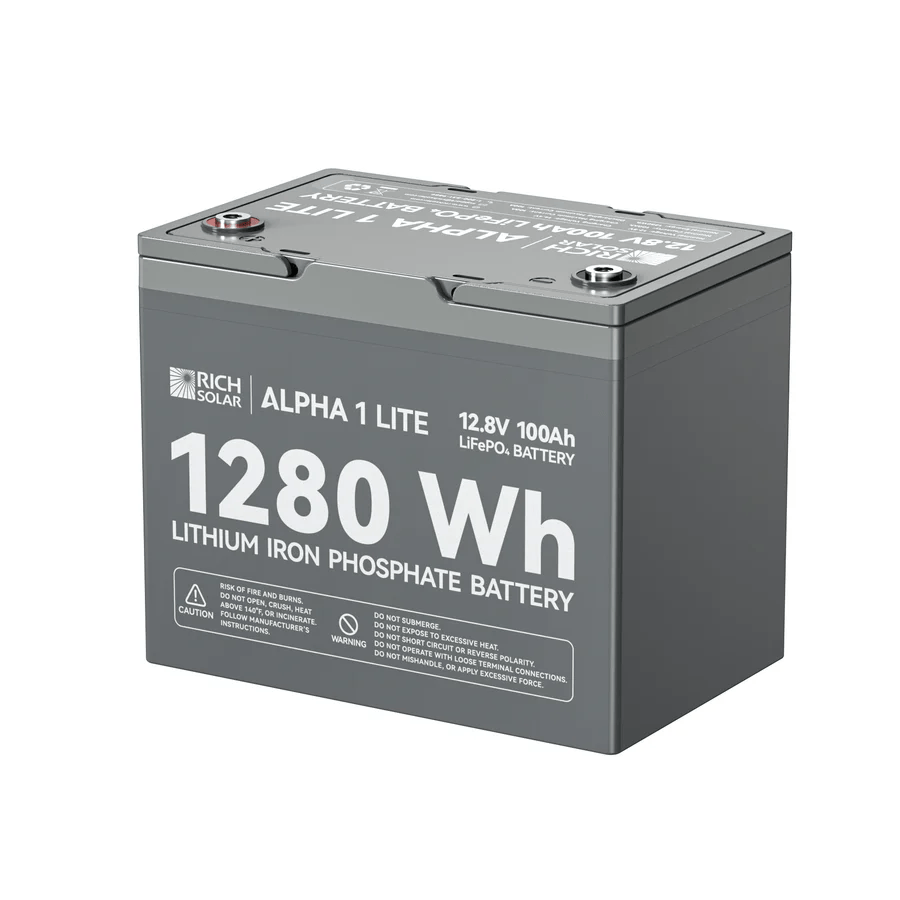

ALPHA 1 LITE | 12V 100Ah LiFePO4 Battery | Lightweight 12V Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid | 4,000 Lifetime Cycles | Best Value

Compact Battery and Packed with Energy

Built with quality materials that are built to last, RICH SOLAR's new ALPHA 1 LITE is a 12V 100Ah battery packed to the brim with premium lithium iron phosphate (LiFePO4) cells. Experience a full day of high-quality power output with the ALPHA 1 LITE's capacity of 100Ah, setting you up for a full day on the open road in your RV, camper, or van. With its low-maintenance, deep-cycle capabilities, and RICH SOLAR's premium materials, you can store your energy with ease.

Specifications

BATTERY

Nominal Voltage:

12.8V

Nominal Capacity:

100Ah

Minimum Capacity:

99.5Ah

Cycle Life:

> 4000 cycles

Operating Specifications

Operating Voltage:

12.8 V

Capacity:

100 Ah

Energy:

1280 Watt Hours

Charge Voltage:

14.4V

Continuous Charge Current:

100A

Continuous Discharge Current:

100A

Self Discharge:

< 5%/month

TEMPERATURE

Charge Temperature:

32℉ to 131℉ (0℃ to 55℃)

Discharge Temperature:

-4℉ to 140℉ (-20℃ to 60℃)

Storage Temperature:

14°F-113°F / -10℃~45℃ 90％RH Max (More than 3 months)

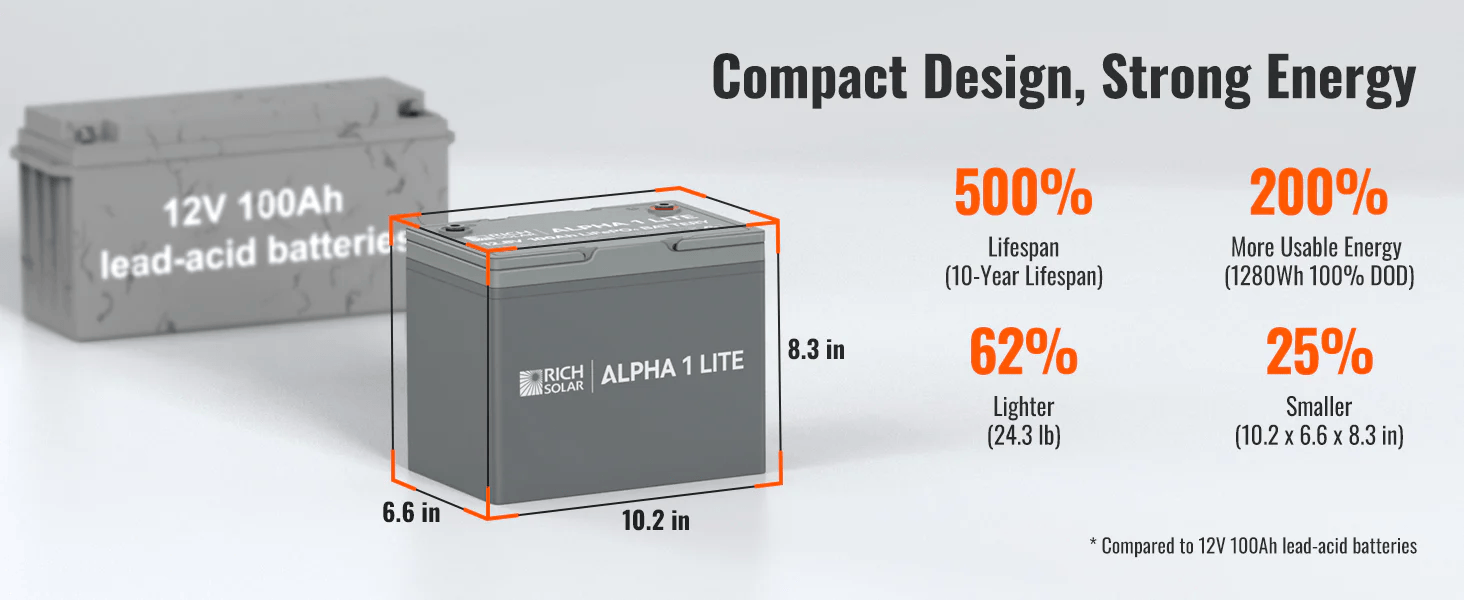

Physical Specifications

Battery Dimensions(LxWxH):

10.2x6.6x8.3 in (Group 24 size)

Weight:

24.3 lb

BMS Operation

Over Charge Protection

Over charge detection voltage:

3.75V±0.03V

Over charge detection delay time:

1000ms±500ms

Over charge recovery voltage:

3.55V (Min 3.40V, Max 3.60V)

Over Discharge Protection

Over discharge detection voltage:

2.20V±0.08V

Over discharge detection delay time:

1000ms±500ms

Over discharge recovery voltage:

2.70V±0.10V

Full Specification: Click Here

Warranty: 5 years
