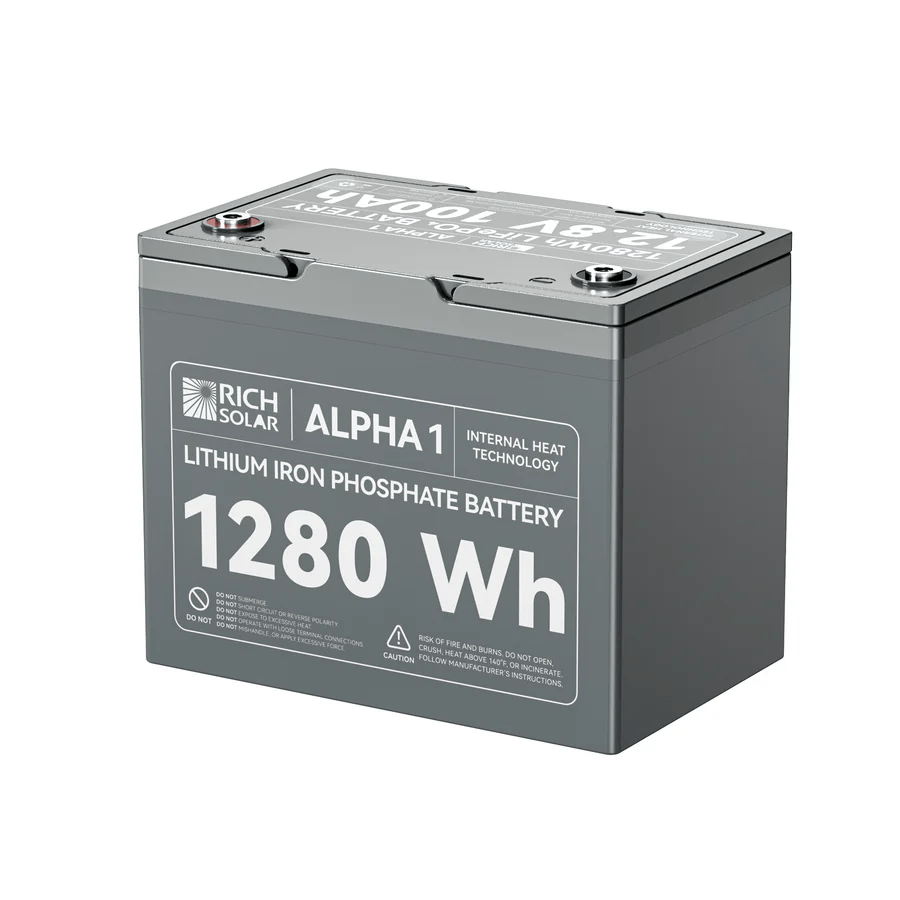

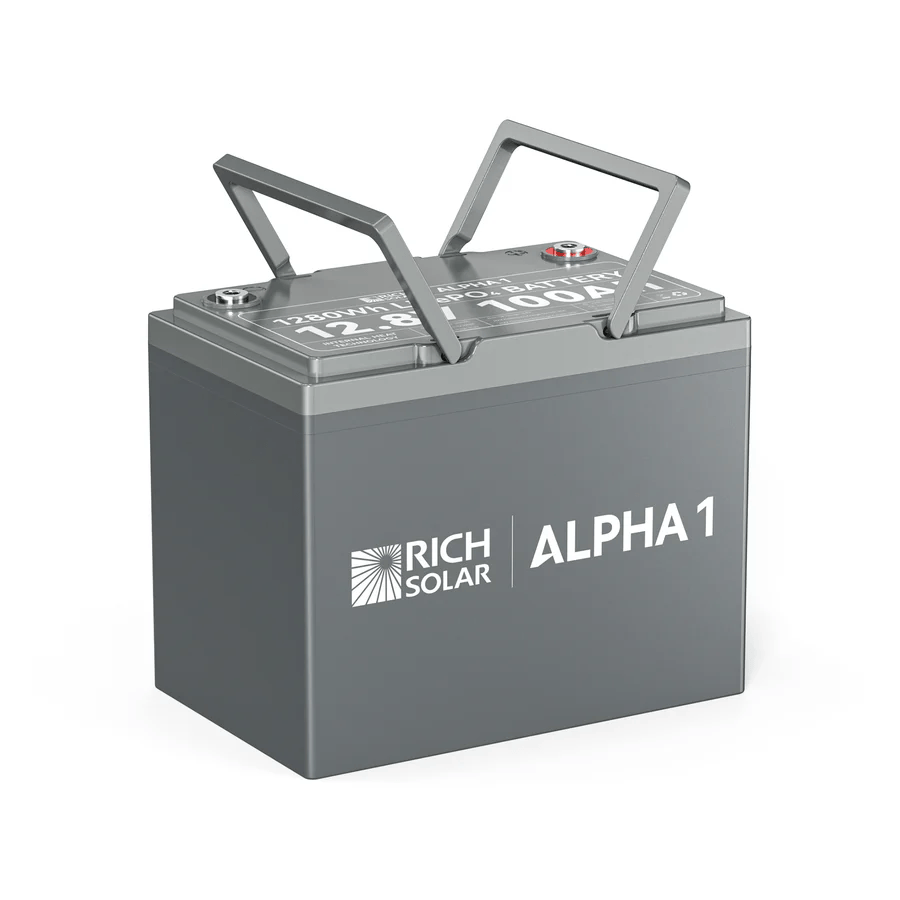

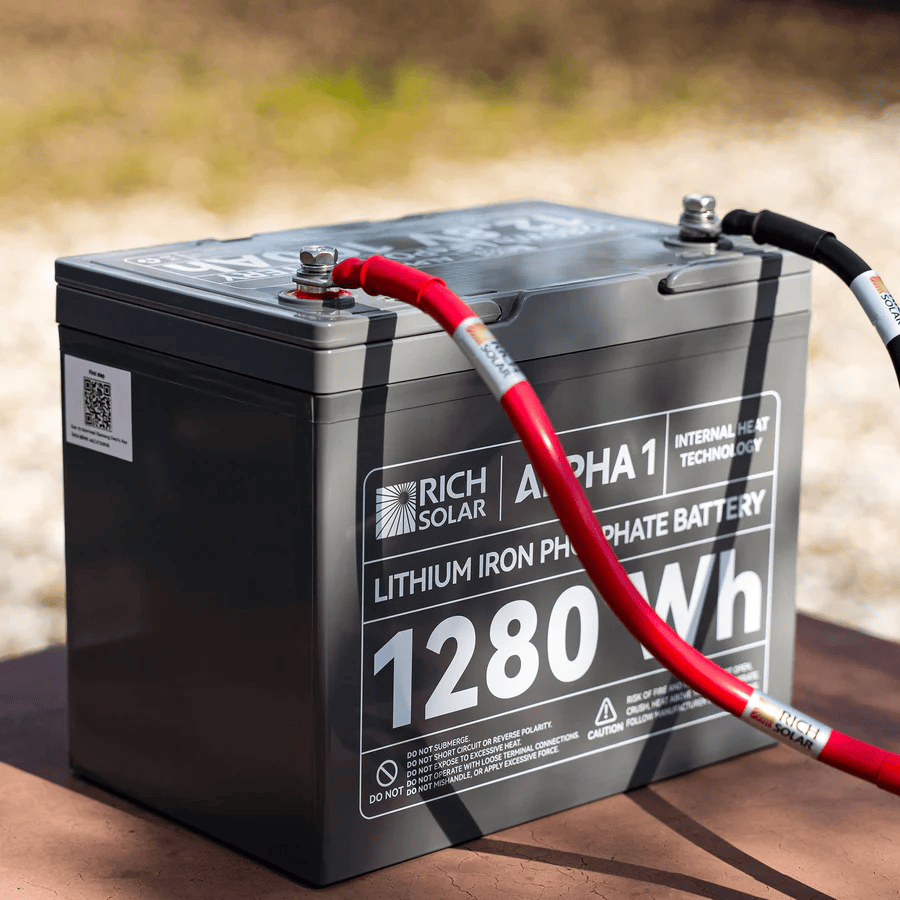

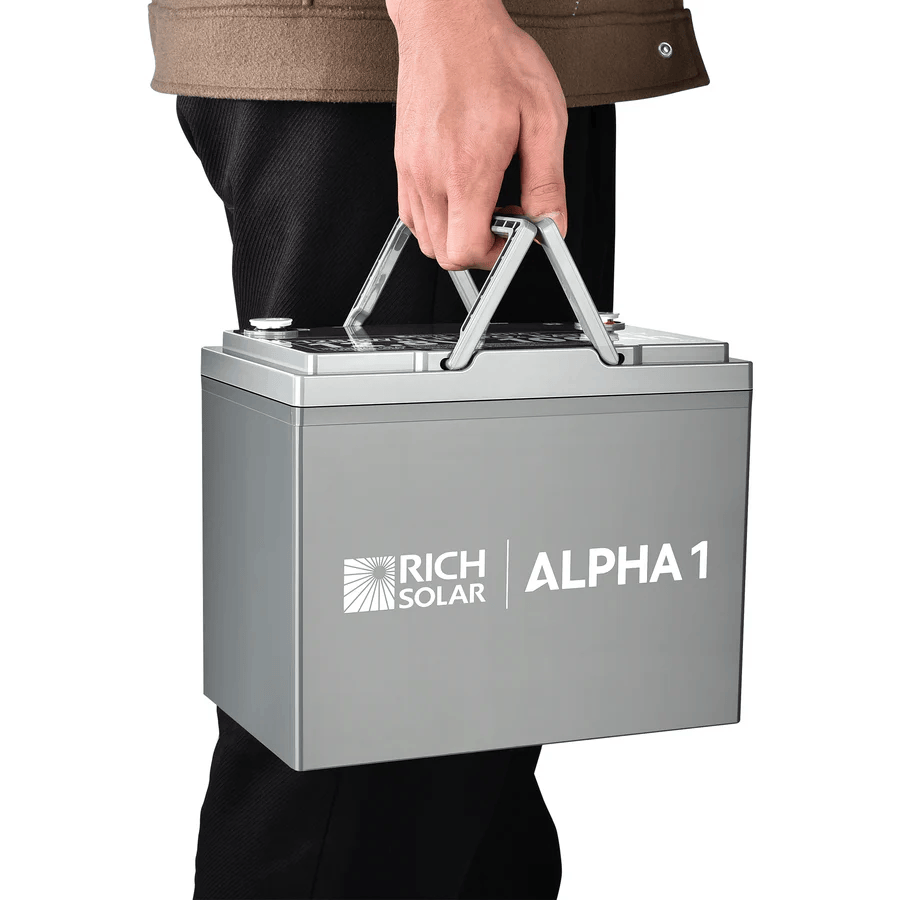

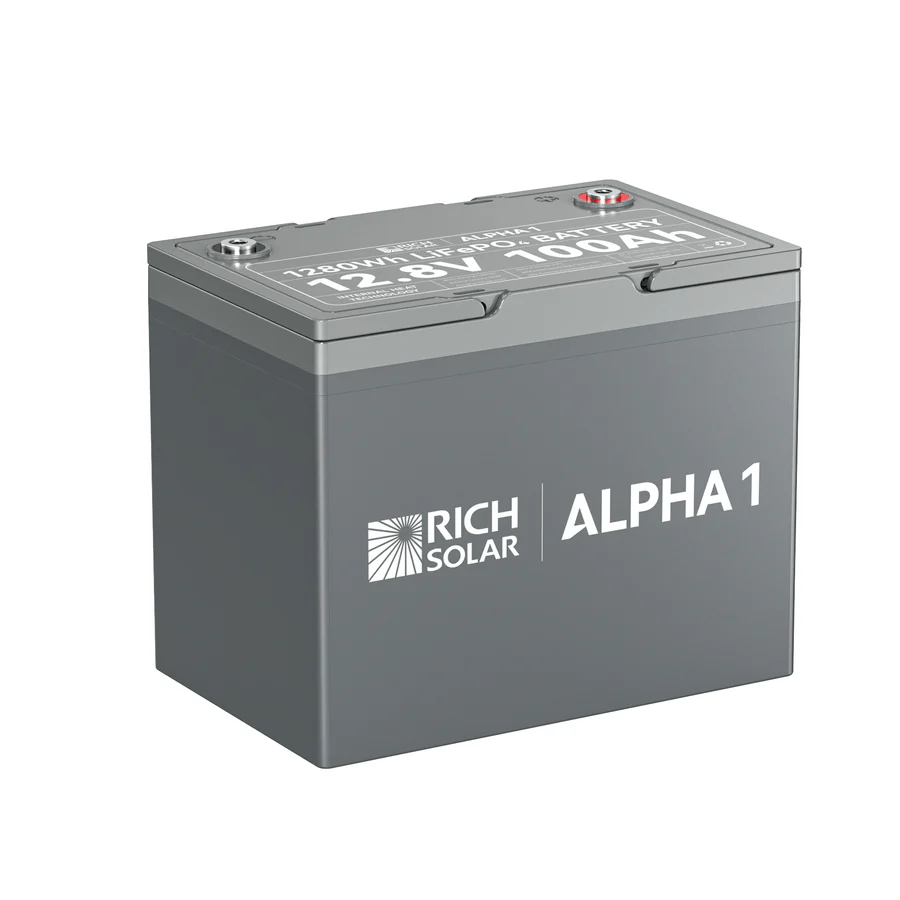

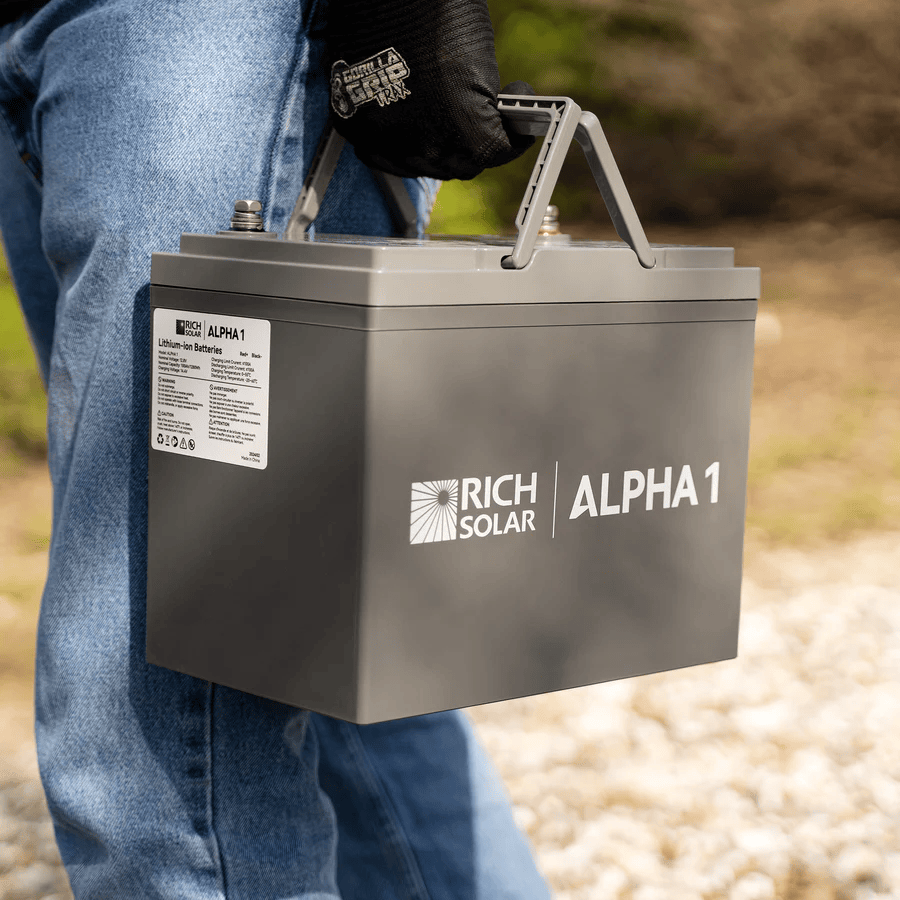

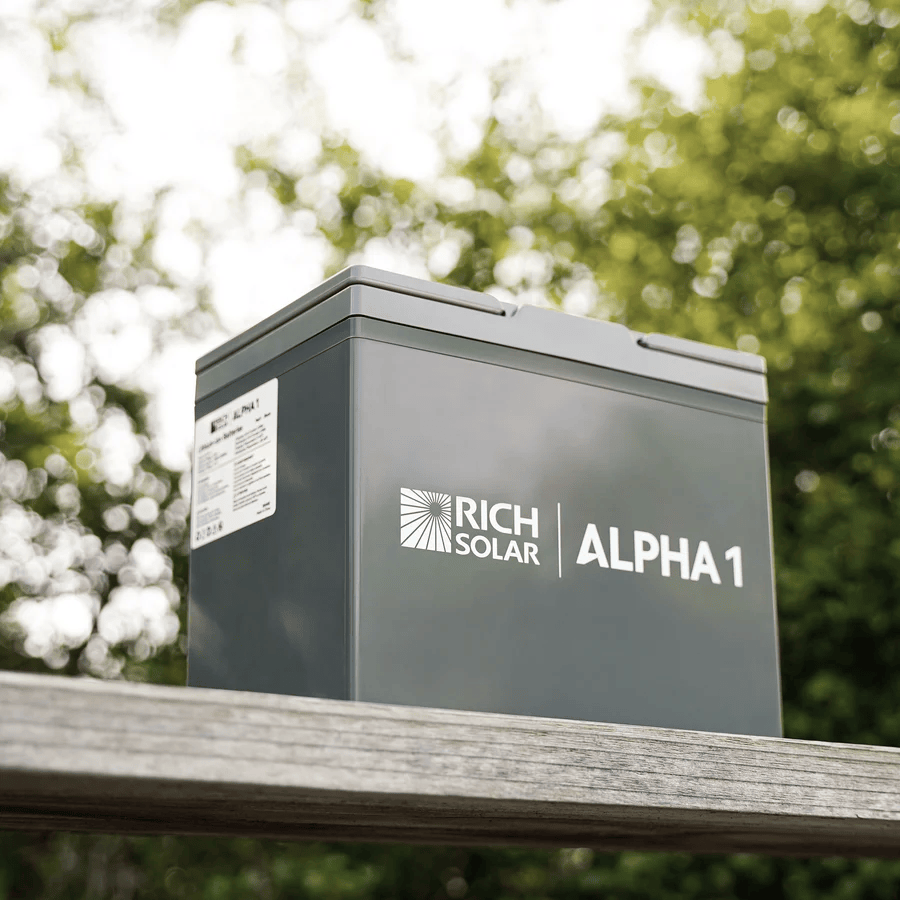

ALPHA 1 | 12V 100Ah LiFePO4 Battery | Powerful 12V Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology
Specifications
BATTERY
Cell Type:
LiFePO4 Battery
Nominal Voltage:
12.8V
Nominal Capacity:
100Ah
Nominal Energy:
1280Wh
Cycle Life:
5000 cycles
BMS
BMS:
100A
Maximum Charging Current:
100A
Maximum Continuous Discharge Current:
100A
Maximum Discharge Current 10 Seconds:
110A
CHARGE
Charge Method:
CC/CV
Charge Voltage:
14.4V ± 0.2V
Recommend Charge Current:
50A (0.5C)
TEMPERATURE
Charge Temperature:
32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature:
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature:
14℉ to 113℉ (-10℃ to 45℃)
SELF-HEATING
External Power Draw:
100W
Internal Heating Starts:
< 41℉ (5℃)
Internal Heating Stops:
> 50℉ (10℃)
OTHERS
Net Battery Weight:
24.0lb
Size(LxWxH):
10.2x6.6x8.3in (Group 24 size)
Housing Material:
ABS (Flame Retardant Plastic)
Protection Class:
IP65
Full Specification: Click Here
Warranty:
5 Years
